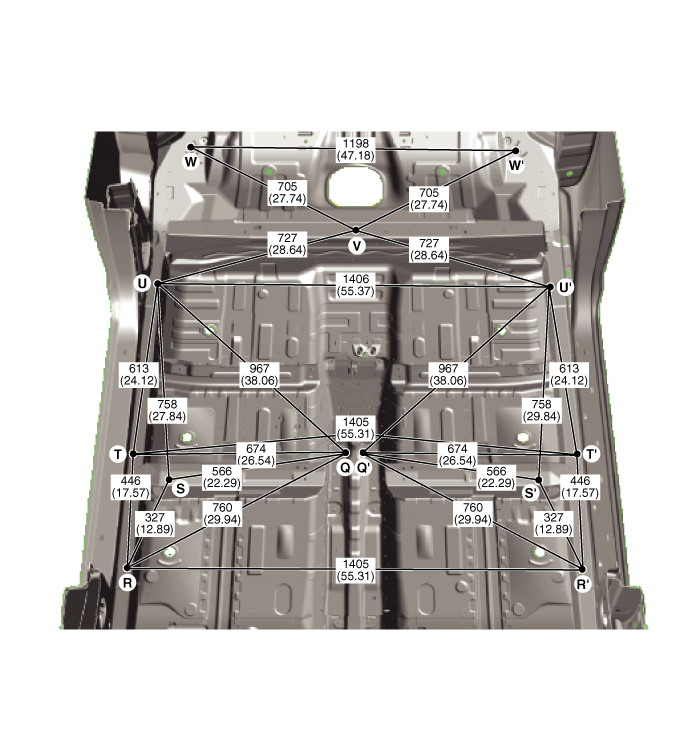

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
 |  |  |
Curtain airbag mounting hole (Ø6.6) | Curtain airbag mounting hole (Ø8.5) | Cowl crossbar mounting hole (Ø9) |
 |  |  |
Front door checker mounting hole (Ø13) | Cowl side trim mounting hole (Ø8.5) | Curtain airbag mounting hole (Ø9) |
 |  |  |
Seat belt height adjuster upper mounting hole (Ø6.6) | Seat belt height adjuster lower mounting hole (Ø13) | Front door striker mounting hole (Ø13) |
 |  |  |
Seat belt pretensioner mounting hole (Ø12.5) | Curtain airbag mounting hole (Ø6.6) | Curtain airbag mounting hole (Ø10) |
 |  |  |
Rear pillar trim mounting hole (Ø10) | Rear pillar trim mounting hole (Ø6.6) | Rear pillar trim mounting hole (7X12) |
 |  |  |
Wheel house panel trim mounting hole (Ø8.5) | Rear package tray panel tooling hole (Ø6) | Parking brake lever mounting hole (Ø9) |
 |  |  |
Floor wiring harness mounting hole (7X12) | Front seat mounting hole (Ø13) | Floor wiring harness mounting hole (7X12) |
 |  |  |
Floor wiring harness mounting hole (7X12) | Rear floor panel tooling hole (7X12) | Rear seat mounting hole (Ø16.2) |
 |  | |
Rear floor panel tooling hole (8.5X8.5) | Rear transverse trim mounting hole (Ø8.5) |
