System Inspection
■ Check Wheel Speed Sensor Signal
1.

Connect GDS to DLC(Data Link Cable).

2.

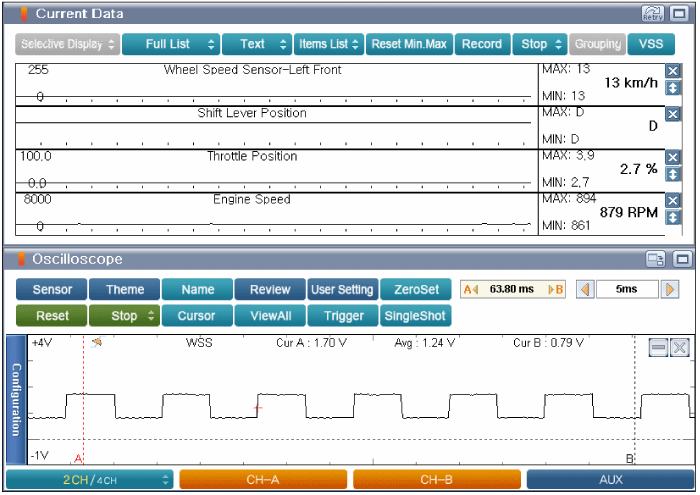

Select "Electronic Stability Program" and perform to inspect regarding wheel speed sensor with GDS

■ Inspection Wheel Speed Sensor
3.

IG Key "OFF".

4.

Disconnect WSS connector.

5.

Measure resistance between power and signal terminal of the WSS. (Component Side)

Specification :

Temperature

Resistance(kΩ)

20

466 kΩ

■ Confirm Part Inspection
6.

Does the AATS work properly? (Check variation)

▶ Go to "Verification of Vehicle Repair" procedure.

▶ Substitute with a known-good AATS and check for proper operation. If the problem is corrected, replace AATS and then go to "Verification of Vehicle Repair" procedure.
