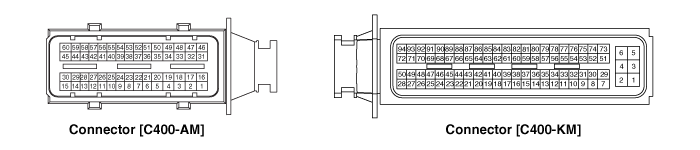

Pin No. | Description | Connected to |
1 | Injector (Cylinder #3) [High] control output | Injector (Cylinder #3) |
2 | Injector (Cylinder #4) [High] control output | Injector (Cylinder #4) |
3 | Injector (Cylinder #2) [Low] control output | Injector (Cylinder #2) |
4 | - |
|
5 | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] heater control output | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] |
6 | - |
|
7 | - | |
8 | - |
|
9 | - |
|
10 | - |
|
11 | - |
|
12 | - | |
13 | - |
|
14 | - | |
15 | CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] control output | CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] |
16 | Injector (Cylinder #2) [High] control output | Injector (Cylinder #2) |
17 | Injector (Cylinder #1) [High] control output | Injector (Cylinder #1) |
18 | Injector (Cylinder #3) [Low] control output | Injector (Cylinder #3) |
19 | - |
|
20 | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor2] heater control output | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] |
21 | - |
|
22 | - |
|
23 | Engine Coolant Temperature Sensor (ECTS) signal input | Engine Coolant Temperature Sensor (ECTS) |
24 | Sensor ground | Engine Coolant Temperature Sensor (ECTS) |
25 | - |
|
26 | - | |
27 | Fuel pump relay control output (NON-Smart key type) | Fuel pump relay |
28 | - |
|
29 | A/C compressor relay control output | A/C compressor relay |
30 | - |
|
31 | Ignition coil (Cylinder #3) control output | Ignition coil (Cylinder #3) |
32 | Ignition coil (Cylinder #1) control output | Ignition coil (Cylinder #1) |
33 | Injector (Cylinder #1) [Low] control output | Injector (Cylinder #1) |
34 | Fuel Pressure Control Valve (FPCV) [High] control output | Fuel Pressure Control Valve (FPCV) |
35 | ETC motor [-] control output | ETC motor |
36 | - |
|
37 | Knock Sensor (KS) signal input | Knock Sensor (KS) |
38 | Sensor ground | Knock Sensor (KS) |
39 | Blower Switch Max. Signal input | Heater control module |
40 | Brake Light switch signal input | Brake switch |
41 | - | |
42 | - | |
43 | - |
|
44 | - |
|
45 | CVVT Oil Control Valve (OCV) [Bank 1/Intake] control output | CVVT Oil Control Valve (OCV) [Bank 1/Intake] |
46 | Ignition coil (Cylinder #4) control output | Ignition coil (Cylinder #4) |
47 | Ignition coil (Cylinder #2) control output | Ignition coil (Cylinder #2) |
48 | Injector (Cylinder #4) [Low] control output | Injector (Cylinder #4) |
49 | Fuel Pressure Control Valve (FPCV) [Low] control output | Fuel Pressure Control Valve (FPCV) |
50 | ETC motor [+] control output | ETC motor |
51 | - |
|
52 | - |
|
53 | Brake Test switch signal input | Brake switch |
54 | - |
|
55 | Clutch switch signal input | Clutch switch |
56 | Electric load signal input [Defrost] | Alternator |
57 | Alternator COM signal output | Alternator |
58 | Engine speed signal output | Cluster |
59 | Cooling fan relay [PWM] control output | Cooling fan relay |
60 | - |
Pin No. | Description | Connected to |
1 | ECM ground | Chassis ground |
2 | ECM ground | Chassis ground |
3 | ECM ground | Chassis ground |
4 | Battery power (B+) | Main relay |
5 | Battery power (B+) | Battery |
6 | Battery power (B+) | Battery |
7 | Battery power (B+) | Main relay |
8 | Sensor ground | Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] |
9 | Accelerator Position Sensor (APS) 1 signal input | Accelerator Position Sensor (APS) 1 |
10 | Sensor ground | Accelerator Position Sensor (APS) 2 |
11 | - |
|
12 | - | |
13 | - |
|
14 | Throttle Position Sensor (TPS) 1 signal input | Throttle Position Sensor (TPS) 1 |
15 | - |
|
16 | - |
|
17 | Fuel Level signal input | Fuel Level Sender (FLS) |
18 | Sensor power (+5V) | Accelerator Position Sensor (APS) 2 |
19 | - |
|
20 | Sensor power (+5V) | Rail Pressure Sensor (RPS) |
Boost Pressure Sensor (BPS) | ||
A/C Pressure Transducer (APT) | ||
21 | - |
|
22 | Wiper switch signal input | Wiper switch |
23 | - | |
24 | Alternator PWM signal output [FR] | Alternator |
25 | - |
|
26 | - |
|
27 | - |
|
28 | - |
|
29 | Ignition switch signal input |
|
30 | Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] signal input | Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] |
31 | Accelerator Position Sensor (APS) 2 signal input | Accelerator Position Sensor (APS) 2 |
32 | Sensor ground | Accelerator Position Sensor (APS) 1 |
33 | Sensor ground | Ambient Temperature Sensor (ATS) |
34 | - |
|
35 | Sensor ground | Throttle Position Sensor (TPS) |
36 | Throttle Position Sensor (TPS) 2 signal input | Throttle Position Sensor (TPS) 2 |
37 | Ambient Temperature Sensor (ATS) signal input | Ambient Temperature Sensor (ATS) |
38 | - |
|
39 | Sensor power (+5V) | Throttle Position Sensor (TPS) 1,2 |
40 | Sensor power (+5V) | Accelerator Position Sensor (APS) 1 |
41 | Sensor power (+5V) | Manifold Absolute Pressure Sensor (MAPS) |
42 | Sensor power (+5V) | Camshaft Position Sensor (CMPS) [Bank 1 / Intake] |
Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] | ||
43 | A/C switch input | Heater & A/C control module |
44 | A/C pressure Switch | Heater & A/C control module |
45 | A/C Pressure Transducer (APT) signal input | A/C Pressure Transducer (APT) |
46 | Vehicle speed signal input | Vehicle Speed Sensor |
47 | - | |
48 | - |
|
49 | - |
|
50 | - | |
51 | - |
|
52 | VS-/IP- (Common Ground for VS, IP) | Heated Oxygen Sensor [Bank 1/Sensor 1] |
53 | Rc/Rp (Pump Cell Voltage) | Heated Oxygen Sensor [Bank 1/Sensor 1] |
54 | - |
|
55 | Sensor ground | Boost Pressure Sensor (BPS) |
56 | - | |
57 | Boost Pressure Sensor (BPS) signal input | Boost Pressure Sensor (BPS) |
58 | Rail Pressure Sensor (RPS) signal input | Rail Pressure Sensor (RPS) |
59 | - | |
60 | Start signal input | PDM module |
61 | LIN communication signal input | |
62 | - |
|
63 | CAN [Low] | Other control module, Data Link Connector (DLC), Multi-Purpose Check Connector |
64 | Sensor ground | Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] |
65 | Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] signal input | Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] |
66 | - |
|
67 | Crankshaft Position Sensor (CKPS) [B] signal input | Crankshaft Position Sensor (CKPS) |
68 | - |
|
69 | - |
|
70 | RCV control Solenoid Valve control output | RCV control solenoid valve |
71 | - |
|
72 | Purge Control Solenoid Valve (PCSV) control output | Purge Control Solenoid Valve (PCSV) |
73 | - |
|
74 | VS+ (NERNST Cell Voltage) | Heated Oxygen Sensor [Bank 1/Sensor 1] |
75 | Rc (Compensative Resistance) | Heated Oxygen Sensor [Bank 1/Sensor 1] |
76 | Sensor ground | Rail Pressure Sensor (RPS) |
77 | Sensor ground | A/C Pressure Transducer (APT) |
78 | Sensor ground | Manifold Absolute Pressure Sensor (MAPS) |
79 | Intake Temperature Sensor (IATS) signal input | Intake Temperature Sensor (IATS) |
80 | Manifold Absolute Pressure Sensor (MAPS) signal input | Manifold Absolute Pressure Sensor (MAPS) |
81 | - |
|
82 | - |
|
83 | Immobilizer communication line | Smart Key Control Module [With Button Engine Start System] |
Immobilizer Control Module [Without Button Engine Start System] | ||
84 | - |
|
85 | CAN [High] | Other control module, Data Link Connector (DLC), Multi-Purpose Check Connector |
86 | Sensor ground | Camshaft Position Sensor (CMPS) [Bank 1 / Intake] |
87 | Camshaft Position Sensor (CMPS) [Bank 1 / Intake] signal input | Camshaft Position Sensor (CMPS) [Bank 1 / Intake] |
88 | - | |
89 | Crankshaft Position Sensor (CKPS) [A] signal input | Crankshaft Position Sensor (CKPS) |
90 | Fuel pump relay control output (Smart key type) | Fuel pump relay |
91 | - |
|

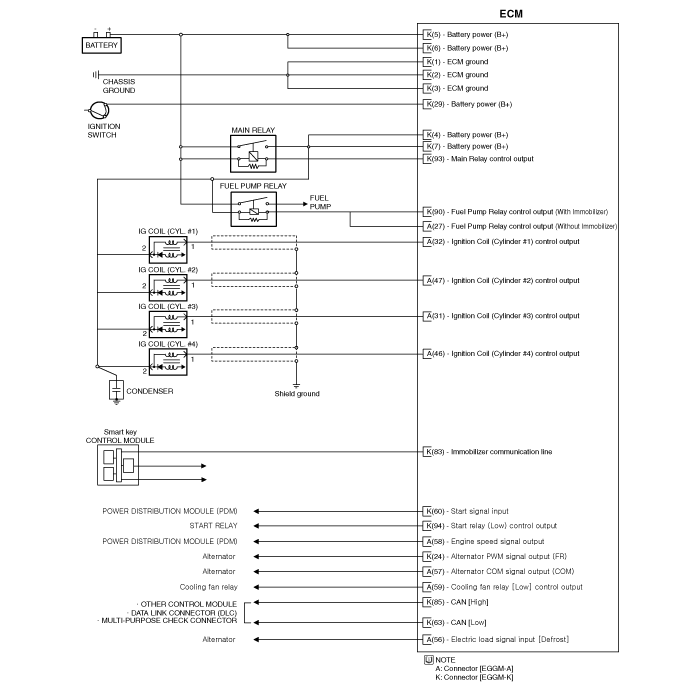

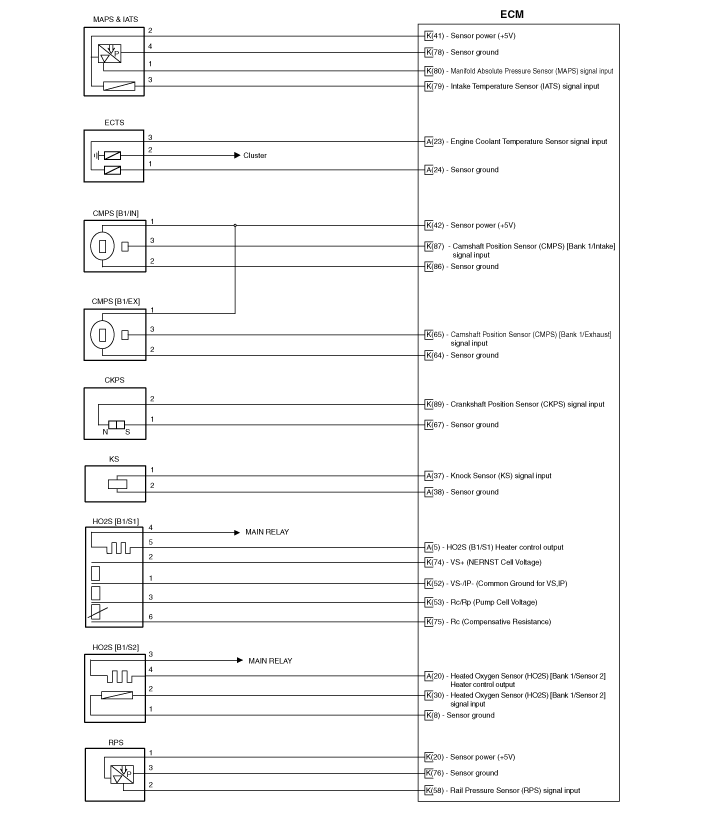

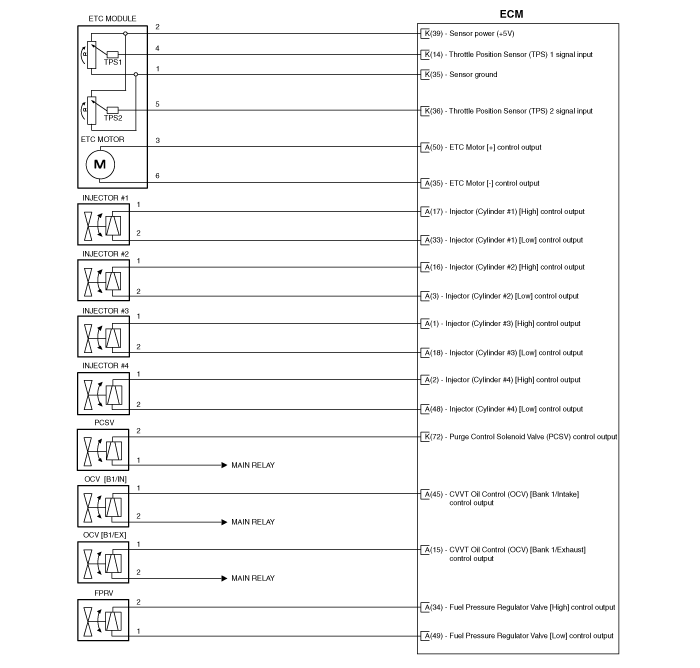

92 | Waste Gate Solenoid Valve (WGV) control output | Waste Gate Solenoid Valve (WGV) |
93 | Main relay control output | Main relay |
94 | Start relay (Low) control output | Start relay |
Pin No. | Description | Condition | Type | Level |
1 | Injector (Cylinder #3) [High] control output | Relay ON/OFF | DC voltage | 71V |
2 | Injector (Cylinder #4) [High] control output | Relay ON/OFF | DC voltage | 71V |
3 | Injector (Cylinder #2) [Low] control output | Relay OFF | DC voltage | 71V |
Relay ON | Max. 1.0V | |||
4 | - |
|
|
|
5 | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] heater control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.65V | |||
6 | - |
|
|
|
7 | - |
|
|
|
8 | - |
|
|
|
9 | - |
|
|
|
10 | - |
|
|
|
11 | - |
|
|
|
12 | - |
|
|
|
13 | - |
|
|
|
14 | - | |||
15 | CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] control output | Idle | Pulse | High: Battery voltage |
Low: Max. 1.65V | ||||
16 | Injector (Cylinder #2) [High] control output | Relay ON/OFF | DC voltage | 71V |
17 | Injector (Cylinder #1) [High] control output | Relay ON/OFF | DC voltage | 71V |
18 | Injector (Cylinder #3) [Low] control output | Relay OFF | DC voltage | 71V |
Relay ON | Max. 1.0V | |||
19 | - |
|
|
|
20 | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor2] heater control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.65V | |||
21 | - |
|
|
|
22 | - |
|
|
|
23 | Engine Coolant Temperature Sensor (ECTS) signal input | Idle | Analog | 0.270 ~ 4.77V |
24 | Sensor ground | Idle | DC voltage | Max. 50mV |
25 | - |
|
|
|
26 | - | |||
27 | Fuel pump relay control output (NON-Smart key type) | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.44V | |||
28 | - |
|
|
|
29 | A/C compressor relay control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.0V | |||
30 | - |
|
|
|
31 | Ignition coil (Cylinder #3) control output | Idle | Pulse | 1st voltage: 370 ~ 430V |
ON voltage: Max. 2.2V | ||||
32 | Ignition coil (Cylinder #1) control output | Idle | Pulse | 1st voltage: 370 ~ 430V |
ON voltage: Max. 2.2V | ||||
33 | Injector (Cylinder #1) [Low] control output | Relay OFF | DC voltage | 71V |
Relay ON | Max. 1.0V | |||
34 | Fuel Pressure Control Valve (FPCV) [High] control output | Relay ON/OFF | DC voltage | 16V |
35 | ETC motor [-] control output | Idle | Pulse | High: Battery voltage |
Low: Max. 1.0V | ||||
36 | - |
|
|
|
37 | Knock Sensor (KS) signal input | Knocking | Variable |
|
Normal | Frequency |
| ||
38 | Sensor ground | Knocking | Variable |
|
Normal | Frequency |
| ||
39 | Blower switch Max. signal input |
|
|
|
40 | Brake Light switch signal input | ON | DC voltage | Battery voltage |
OFF | Max. 2.25V | |||
41 | - |
|
|
|
42 | - |
|
|
|
43 | - |
|
|
|
44 | - |
|
|
|
45 | CVVT Oil Control Valve (OCV) [Bank 1/Intake] control output | Idle | Pulse | High: Battery voltage |
Low: Max. 1.65V | ||||
46 | Ignition coil (Cylinder #4) control output | Idle | Pulse | 1st voltage: 370 ~ 430V |
ON voltage: Max. 2.2V | ||||
47 | Ignition coil (Cylinder #2) control output | Idle | Pulse | 1st voltage: 370 ~ 430V |
ON voltage: Max. 2.2V | ||||
48 | Injector (Cylinder #4) [Low] control output | Relay OFF | DC voltage | 71V |
Relay ON | Max. 1.0V | |||
49 | Fuel Pressure Control Valve (FPCV) [Low] control output | Relay OFF | DC voltage | 16V |
Relay ON | Max. 1.0V | |||
50 | ETC motor [+] control output | Idle | Pulse | High: Battery voltage |
Low: Max. 1.0V | ||||
51 | - |
|
|
|
52 | - |
|
|
|
53 | Brake Test switch signal input | ON | DC voltage | Battery voltage |
OFF | Max. 2.25V | |||
54 | - |
|
|
|
55 | Clutch switch signal input |
|
|
|
56 | Electric load signal input [Defrost] | ON | DC voltage | Battery voltage |
OFF | Max. 2.25V | |||
57 | Alternator COM signal output | Idle | Pulse | High: Battery voltage |
Low: Max. 0.6V | ||||
58 | Engine speed signal output | |||
59 | Cooling fan relay [PWM] control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.76V | |||
60 | - | |||
Pin No. | Description | Condition | Type | Level |
1 | ECM ground | Idle | DC voltage | Max. 50mV |
2 | ECM ground | Idle | DC voltage | Max. 50mV |
3 | ECM ground | Idle | DC voltage | Max. 50mV |
4 | Battery power (B+) | IG OFF | DC voltage | Max. 1.0V |
IG ON | Battery voltage | |||
5 | Battery power (B+) | IG OFF | DC voltage | Max. 1.0V |
IG ON | Battery voltage | |||
6 | Battery power (B+) | IG OFF | DC voltage | Max. 1.0V |
IG ON | Battery voltage | |||
7 | Battery power (B+) | IG OFF | DC voltage | Max. 1.0V |
IG ON | Battery voltage | |||
8 | Sensor ground | Idle | DC voltage | Max. 50mV |
9 | Accelerator Position Sensor (APS) 1 signal input | Idle | Analog | 0.674 ~ 4.379 V |
10 | Sensor ground | Idle | DC voltage | Max. 50mV |
11 | - |
|
|
|
12 | Sensor ground | Idle | DC voltage | Max. 50mV |
13 | - |
|
|
|
14 | Throttle Position Sensor (TPS) 1 signal input | Idle | Analog | 0.33 ~ 4.72 V |
15 | - |
|
|
|
16 | - |
|
|
|
17 | Fuel Level signal input | Idle | Analog | 0.193 ~ 4.0V |
18 | Sensor power (+5V) | IG OFF | DC voltage | Max. 0.5V |
IG ON | 4.9 ~ 5.1V | |||
19 | - |
|
|
|
20 | Sensor power (+5V) | IG OFF | DC voltage | Max. 0.5V |
IG ON | 4.9 ~ 5.1V | |||
21 | - |
|
|
|
22 | Wiper switch signal input | |||
23 | - |
|
|
|
24 | Alternator PWM signal output [FR] | Idle | Pulse | High: Battery voltage |
Low: Max. 1.5V | ||||
25 | - |
|
|
|
26 | - |
|
|
|
27 | - |
|
|
|
28 | - |
|
|
|
29 | Ignition switch signal input | IG OFF | DC voltage | Max. 1.0V |
IG ON | Battery voltage | |||
30 | Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] signal input | Engine | Analog | Rich: 0.6 ∼ 1.0V |
Running | Lean: Max. 0.4V | |||
31 | Accelerator Position Sensor (APS) 2 signal input | Idle | Analog | 0.261 ~ 2.204 V |
32 | Sensor ground | Idle | DC voltage | Max. 50mV |
33 | Sensor ground | Idle | DC voltage | Max. 50mV |
34 | - |
|
|
|
35 | Sensor ground | Idle | DC voltage | Max. 50mV |
36 | Throttle Position Sensor (TPS) 2 signal input | Idle | Analog | 0.55 ~ 4.37 V |
37 | Ambient Temperature Sensor (ATS) signal input |
|
|
|
38 | - |
|
|
|
39 | Sensor power (+5V) | IG OFF | DC voltage | Max. 0.5V |
IG ON | 4.9 ~ 5.1V | |||
40 | Sensor power (+5V) | IG OFF | DC voltage | Max. 0.5V |
IG ON | 4.9 ~ 5.1V | |||
41 | Sensor power (+5V) | IG OFF | DC voltage | Max. 0.5V |
IG ON | 4.9 ~ 5.1V | |||
42 | Sensor power (+5V) | IG OFF | DC voltage | Max. 0.5V |
IG ON | 4.9 ~ 5.1V | |||
43 | A/C switch input |
|
|
|
44 | A/C pressure switch |
|
|
|
45 | A/C Pressure Transducer (APT) signal input | A/C ON | Analog | 0.348 ~ 4.63 V |
46 | Vehicle speed signal input | Idle | Pulse | High: Min. 5.4V |
Low: Max. 2.25V | ||||
47 | - |
|
|
|
48 | - |
|
|
|
49 | - |
|
|
|
50 | - |
|
|
|
51 | - |
|
|
|
52 | VS-/IP- (Common Ground for VS, IP) | Idle | DC voltage | Max. 50mV |
53 | Rc/Rp (Pump Cell Voltage) | Idle | Analog | 0 ~ 5.1V |
54 | - |
|
|
|
55 | Sensor ground | Idle | DC voltage | Max. 50mV |
56 | - |
|
|
|
57 | Boost Pressure Sensor (BPS) signal input |
|
|
|
58 | Rail Pressure Sensor (RPS) signal input | Idle | Analog | 0.43 ~ 3.46V |
59 | - |
|
|
|
60 | Start signal input | ON | DC voltage | Battery voltage |
OFF | Max. 2V | |||
61 | LIN communication signal input | |||
62 | - |
|
|
|
63 | CAN [Low] | RECESSIVE | Pulse | 2.0 ~ 3.0V |
DOMINANT | 0.5 ~ 2.25V | |||
64 | Sensor ground | Idle | DC voltage | Max. 50mV |
65 | Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] signal input | Idle | Pulse | High: min. 4.8V |
Low: Max. 0.6V | ||||
66 | - |
|
|
|
67 | Crankshaft Position Sensor (CKPS) [B] signal input | Idle | Pulse | Vp_p: Min. 1.0V |
68 | - |
|
|
|
69 | - |
|
|
|
70 | RCV control solenoid valve control output |
|
|
|
71 | - |
|
|
|
72 | Purge Control Solenoid Valve (PCSV) control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.76V | |||
73 | - |
|
|
|
74 | VS+ (NERNST Cell Voltage) | Idle | Analog | 0 ~ 5.1V |
75 | Rc (Compensative Resistance) | Idle | Analog | 0 ~ 5.1V |
76 | Sensor ground | Idle | DC voltage | - |
77 | Sensor ground | Idle | DC voltage | Max. 50mV |
78 | Sensor ground | Idle | DC voltage | Max. 50mV |
79 | Intake Temperature Sensor (IATS) signal input | Idle | Analog | 0.209 ~ 4.756V |
80 | Manifold Absolute Pressure Sensor (MAPS) signal input | Idle | Analog | 0.6683 ~ 4.346V |
81 | - |
|
|
|
82 | - |
|
|
|
83 | Immobilizer communication line | When transmitting | Pulse | High: Min. 8.4V(at 14V) |
Low: Max. 6.44V(at 14V) | ||||
84 | - |
|
|
|
85 | CAN [High] | RECESSIVE | Pulse | 2.0 ~ 3.0V |
DOMINANT | 2.75 ~ 4.5V | |||
86 | Sensor ground | Idle | DC voltage | Max. 50mV |
87 | Camshaft Position Sensor (CMPS) [Bank 1 / Intake] signal input | Idle | Pulse | High: min. 4.8V |
Low: Max. 0.6V | ||||
88 | - |
|
|
|
89 | Crankshaft Position Sensor (CKPS) [A] signal input | Idle | Pulse | Vp_p: Min. 1.0V |
90 | Fuel pump relay control output (Smart key type) | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.44V | |||
91 | - |
|
|
|
92 | Waste Gate Solenoid Valve (WGV) control output |
|
|
|
93 | Main relay control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.7V | |||
94 | Start relay control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 2.64V |
Pin No. | Description | Connected to |
1 | Injector (Cylinder #1) [High] control output | Injector (Cylinder #1) |
2 | Injector (Cylinder #4) [High] control output | Injector (Cylinder #4) |
3 | Injector (Cylinder #2) [High] control output | Injector (Cylinder #2) |
4 | Injector (Cylinder #3) [High] control output | Injector (Cylinder #3) |
5 | - |
|
6 | - |
|
7 | Purge Control Solenoid Valve (PCSV) control output | Purge Control Solenoid Valve (PCSV) |
8 | - | |
9 | - |
|
10 | - | |
11 | Sensor power (+5V) | Manifold Absolute Pressure Sensor (MAPS) |
12 | Throttle Position Sensor (TPS) 1 signal input | Throttle Position Sensor (TPS) 1 |
13 | Sensor ground | Engine Coolant Temperature Sensor (ECTS) |
14 | - |
|
15 | Sensor power (+5V) | Accelerator Position Sensor (APS) 2 |
16 | - |
|
17 | Sensor ground | Ambient Temperature Sensor (ATS) |
18 | Sensor power (+5V) | Throttle Position Sensor (TPS) 1,2 |
19 | Sensor power (+5V) | Accelerator Position Sensor (APS) 1 |
20 | - | |
21 | Sensor ground | Boost Pressure Sensor (BPS) |
22 | - |
|
23 | - |
|
24 | Heated Oxygen Sensor [Bank 1/Sensor 1] heater control output | Heated Oxygen Sensor [Bank 1/Sensor 1] |
25 | Heated Oxygen Sensor [Bank 1/Sensor 2] heater control output | Heated Oxygen Sensor [Bank 1/Sensor 2] |
26 | - |
|
27 | - |
|
28 | - |
|
29 | - |
|
30 | A/C pressure switch signal input | A/C pressure switch |
31 | A/C switch signal input | A/C switch |
32 | Sensor ground | Throttle Position Sensor (TPS) 1,2 |
33 | Boost Pressure Sensor (BPS) signal input | Boost Pressure Sensor (BPS) |
34 | Throttle Position Sensor (TPS) 2 signal input | Throttle Position Sensor (TPS) 2 |
35 | - |
|
36 | - |
|
37 | - |
|
38 | - |
|
39 | - |
|
40 | - |
|
41 | Sensor ground | Heated Oxygen Sensor [Bank 1/Sensor 2] |
42 | - |
|
43 | - |
|
44 | - |
|
45 | - |
|
46 | - |
|
47 | - |
|
48 | - |
|
49 | - |
|
50 | - |
|
51 | Alternator PWM signal output [FR] | Alternator |
52 | - |
|
53 | Brake switch signal input [FR] | Brake switch |
54 | Accelerator Position Sensor (APS) 1 signal input | Accelerator Position Sensor (APS) 1 |
55 | Blower switch Max. signal input | Heater control module |
56 | Accelerator Position Sensor (APS) 2 signal input | Accelerator Position Sensor (APS) 2 |
57 | - |
|
58 | - |
|
59 | - |
|
60 | Sensor ground | Knock Sensor (KS) |
61 | Knock Sensor (KS) signal input | Knock Sensor (KS) |
62 | Sensor ground | Accelerator Position Sensor (APS) 1 |
63 | Sensor ground | Accelerator Position Sensor (APS) 2 |
64 | Injector (Cylinder #1) [Low] control output | Injector (Cylinder #1) |
65 | Injector (Cylinder #4) [Low] control output | Injector (Cylinder #4) |
66 | Injector (Cylinder #2) [Low] control output | Injector (Cylinder #2) |
67 | Injector (Cylinder #3) [Low] control output | Injector (Cylinder #3) |
68 | - |
|
69 | - |
|
70 | - |
|
71 | - |
|
72 | - |
|
73 | - |
|
74 | - |
|
75 | - |
|
76 | - |
|
77 | - | |
78 | Fuel Level Sender (FLS) signal input | Fuel Level Sender (FLS) |
79 | - | |
80 | Ambient Temperature Sensor (ATS) signal input | Ambient Temperature Sensor (ATS) |
81 | - |
|
82 | Engine Coolant Temperature Sensor (ECTS) signal input | Engine Coolant Temperature Sensor (ECTS) |
83 | VS-/IP- (Common Ground for VS, IP) | Heated Oxygen Sensor [Bank 1/Sensor 1] |
84 | VS+ (NERNST Cell Voltage) | Heated Oxygen Sensor [Bank 1/Sensor 1] |
85 | Fuel Pressure Control Valve (FPCV) [Low] control output | Fuel Pressure Control Valve (FPCV) |
86 | Fuel Pressure Control Valve (FPCV) [High] control output | Fuel Pressure Control Valve (FPCV) |
87 | - |
|
88 | - |
|
89 | - |
|
90 | - |
|
91 | - |
|
92 | - |
|
93 | - |
|
94 | - |
|
95 | - |
|
96 | - |
|
97 | - |
|
98 | - |
|
99 | - |
|
100 | - |
|
101 | - |
|
102 | - |
|
103 | Heated Oxygen Sensor [Bank 1/Sensor 2] signal input | Heated Oxygen Sensor [Bank 1/Sensor 2] |
104 | Rc/Rp (Pump Cell Voltage) | Heated Oxygen Sensor [Bank 1/Sensor 1] |
105 | Rc (Compensative Resistance) | Heated Oxygen Sensor [Bank 1/Sensor 1] |
Pin No. | Description | Connected to |
1 | ECM ground | Chassis ground |
2 | ECM ground | Chassis ground |
3 | Battery power (B+) | Ignition switch |
4 | ECM ground | Chassis ground |
5 | Battery power (B+) | Ignition switch |
6 | Battery power (B+) | Main relay |
7 | Sensor ground | Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] |
8 | Sensor ground | Manifold Absolute Pressure Sensor (MAPS) |
9 | - |
|
10 | Sensor ground | Rail Pressure Sensor (RPS) |
11 | - |
|
12 | - |
|
13 | Sensor power (+5V) | Camshaft Position Sensor (CMPS) [Bank 1 / Intake] |
Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] | ||
14 | - |
|
15 | Sensor power (+5V) | Rail Pressure Sensor (RPS) |
A/C Pressure Transducer (APT) | ||
16 | Alternator PWM signal output [COM] | Alternator |
17 | - |
|
18 | - |
|
19 | - |
|
20 | Cooling fan relay [PWM] control output | Cooling fan relay |
21 | - |
|
22 | ETC motor [-] control output | ETC motor |
23 | ETC motor [+] control output | ETC motor |
24 | - | |
25 | Sensor ground | A/C Pressure Transducer (APT) |
26 | Manifold Absolute Pressure Sensor (MAPS) signal input | Manifold Absolute Pressure Sensor (MAPS) |
27 | Rail Pressure Sensor (RPS) signal input | Rail Pressure Sensor (RPS) |
28 | Intake Air Temperature Sensor (IATS) signal input | Intake Air Temperature Sensor (IATS) |
29 | Electric load signal input [Defrost] | Alternator |
30 | - | |
31 | - | |
32 | - |
|
33 | - |
|
34 | - |
|
35 | - | |
36 | Cooling fan relay [High] control output | Cooling fan relay |
37 | Fuel pump relay control output (Smart key type) | Fuel pump relay |
38 | - |
|
39 | CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] control output | CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] |
40 | Ignition coil (Cylinder #2) control output | Ignition coil (Cylinder #2) |
41 | - |
|
42 | - | |
43 | - | |
44 | A/C Pressure Transducer (APT) signal input | A/C Pressure Transducer (APT) |
45 | - |
|
46 | Brake Light switch signal input | Brake switch |
47 | Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] signal input | Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] |
48 | - |
|
49 | Wiper switch signal input | Wiper switch |
50 | Main relay control output | Main relay |
51 | Fuel pump relay control output (NON-Smart key type) | Fuel pump relay |
52 | - |
|
53 | - |
|
54 | - | |
55 | - |
|
56 | CVVT Oil Control Valve (OCV) [Bank 1/Intake] control output | CVVT Oil Control Valve (OCV) [Bank 1/Intake] |
57 | Ignition coil (Cylinder #1) control output | Ignition coil (Cylinder #1) |
58 | - |
|
59 | - |
|
60 | CAN [High] | Other control module, Data Link Connector (DLC), Multi-Purpose Check Connector |
61 | Immobilizer communication line | Smart Key Control Module [With Button Engine Start System] |
Immobilizer Control Module [Without Button Engine Start System] | ||
62 | LIN communication signal input | Battery sensor |
63 | Engine rpm signal | Cluster |
64 | Vehicle speed signal input | Vehicle Speed Sensor |
65 | - |
|
66 | Camshaft Position Sensor (CMPS) [Bank 1 / Intake] signal input | Camshaft Position Sensor (CMPS) [Bank 1 / Intake] |
67 | Start signal input | PDM module |
68 | Ignition switch signal input | Ignition switch |
69 | - |
|
70 | - |
|
71 | Start relay control output | Start relay |
72 | - |
|
73 | - |
|
74 | Ignition coil (Cylinder #4) control output | Ignition coil (Cylinder #4) |
75 | Battery power (B+) | Main relay |
76 | - |
|
77 | CAN [Low] | Other control module, Data Link Connector (DLC), Multi-Purpose Check Connector |
78 | Sensor ground | Crankshaft Position Sensor (CKPS) |
79 | Crankshaft Position Sensor (CKPS) [A] signal input | Crankshaft Position Sensor (CKPS) |
80 | Sensor ground | Camshaft Position Sensor (CMPS) [Bank 1 / Intake] |
81 | - | |
82 | - | |
83 | A/C compressor relay control output | A/C compressor relay |
84 | RCV control solenoid valve control output | RCV control solenoid valve |
85 | - | |
86 | - |
|
87 | - |
|
88 | - | |
89 | Waste Gate Solenoid Valve (WGV) control output | Waste Gate Solenoid Valve (WGV) |
90 | - |
|

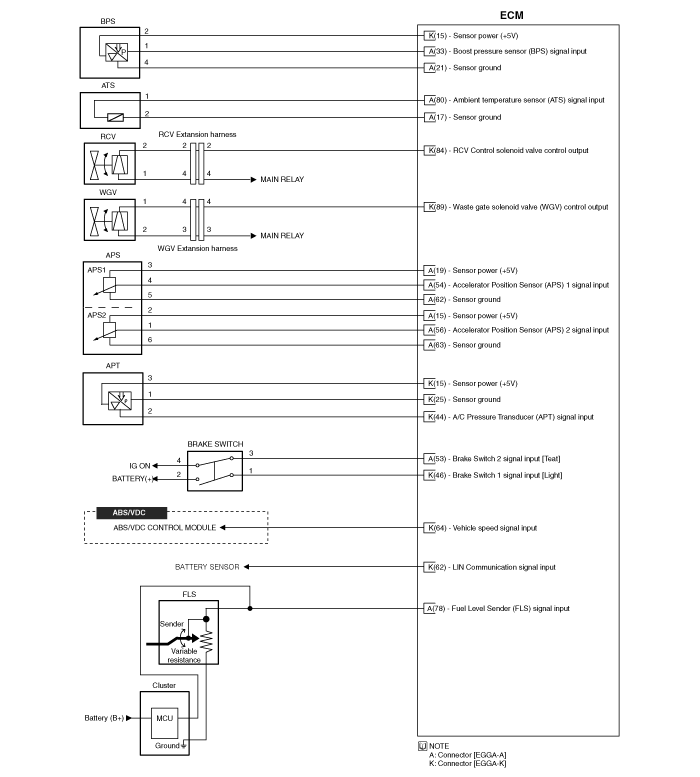

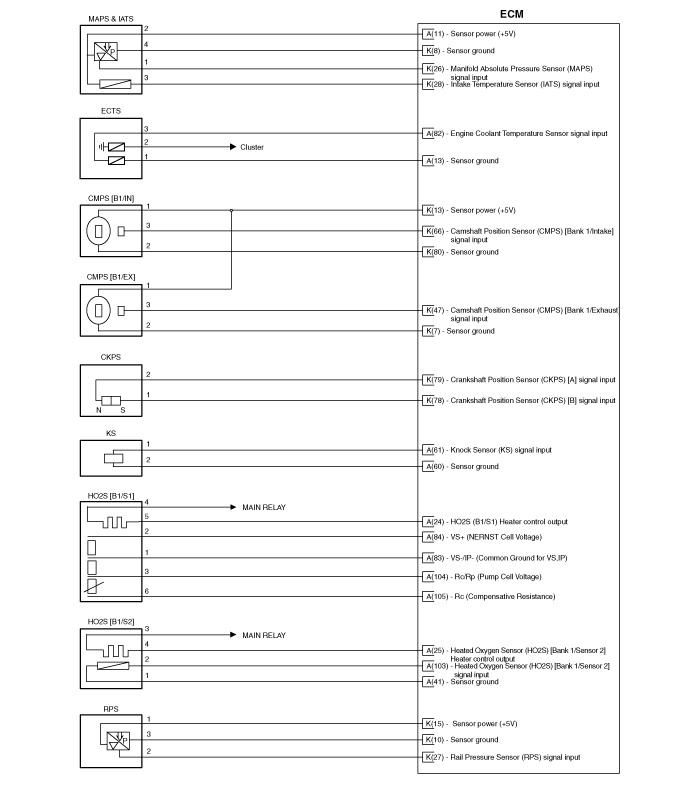

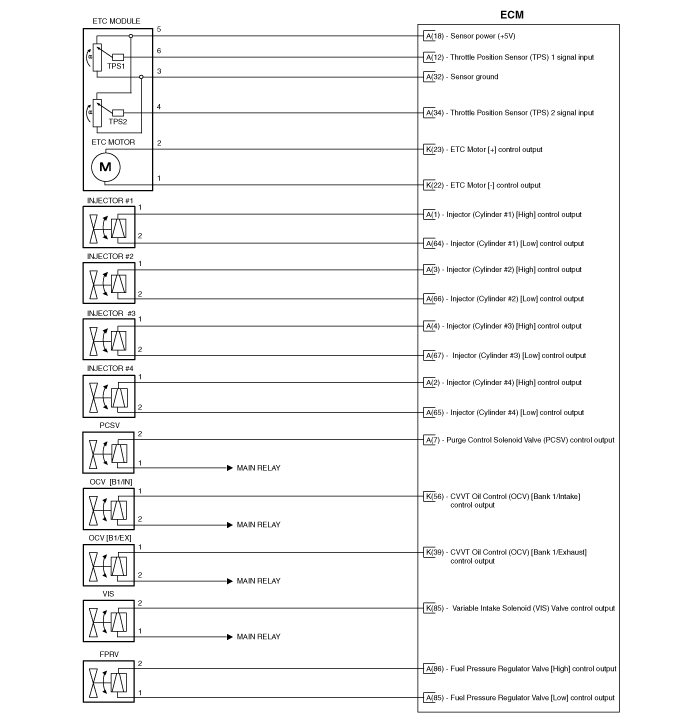

91 | Ignition coil (Cylinder #3) control output | Ignition coil (Cylinder #3) |
Pin No. | Description | Condition | Type | Level |
1 | Injector (Cylinder #1) [High] control output | Relay ON/OFF | DC voltage | 71V |
2 | Injector (Cylinder #4) [High] control output | Relay ON/OFF | DC voltage | 71V |
3 | Injector (Cylinder #2) [High] control output | Relay ON/OFF | DC voltage | 71V |
4 | Injector (Cylinder #3) [High] control output | Relay ON/OFF | DC voltage | 71V |
5 | - |
|
|
|
6 | - |
|
|
|
7 | Purge Control Solenoid Valve (PCSV) control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.76V | |||
8 | - | |||
9 | - |
|
|
|
10 | - | |||
11 | Sensor power (+5V) | IG OFF | DC voltage | Max. 0.5V |
IG ON | 4.9 ~ 5.1V | |||
12 | Throttle Position Sensor (TPS) 1 signal input | Idle | Analog | 0.33 ~ 4.72 V |
13 | Sensor ground | Idle | DC voltage | Max. 50mV |
14 | - |
|
|
|
15 | Sensor power (+5V) | IG OFF | DC voltage | Max. 0.5V |
IG ON | 4.9 ~ 5.1V | |||
16 | - |
|
|
|
17 | Sensor ground | Idle | DC voltage | Max. 50mV |
18 | Sensor power (+5V) | IG OFF | DC voltage | Max. 0.5V |
IG ON | 4.9 ~ 5.1V | |||
19 | Sensor power (+5V) | IG OFF | DC voltage | Max. 0.5V |
IG ON | 4.9 ~ 5.1V | |||
20 | - | |||
21 | Sensor ground | Idle | DC voltage | Max. 50mV |
22 | - |
|
|
|
23 | - |
|
|
|
24 | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1] heater control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.65V | |||
25 | Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2] heater control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.65V | |||
26 | - |
|
|
|
27 | - |
|
|
|
28 | - |
|
|
|
29 | - |
|
|
|
30 | A/C pressure switch signal input | ON | DC voltage | Battery voltage |
OFF | Max. 2V | |||
31 | A/C switch signal input | ON | DC voltage | Battery voltage |
OFF | Max. 2V | |||
32 | Sensor ground | Idle | DC voltage | Max. 50mV |
33 | Boost Pressure Sensor (BPS) signal input |
|
|
|
34 | Throttle Position Sensor (TPS) 2 signal input | Idle | Analog | 0.55 ~ 4.37 V |
35 | - |
|
|
|
36 | - |
|
|
|
37 | - |
|
|
|
38 | - |
|
|
|
39 | - |
|
|
|
40 | - |
|
|
|
41 | Sensor ground | Idle | DC voltage | Max. 50mV |
42 | - |
|
|
|
43 | - |
|
|
|
44 | - |
|
|
|
45 | - |
|
|
|
46 | - |
|
|
|
47 | - |
|
|
|
48 | - |
|
|
|
49 | - |
|
|
|
50 | - |
|
|
|
51 | Alternator PWM signal output [FR] | Idle | Pulse | High: Battery voltage |
Low: Max. 1.5V | ||||
52 | - |
|
|
|
53 | Brake switch signal input | ON | DC voltage | Battery voltage |
OFF | Max. 2.25V | |||
54 | Accelerator Position Sensor (APS) 1 signal input | Idle | Analog | 0.674 ~ 4.379 V |
55 | Blower switch Max. signal input | |||
56 | Accelerator Position Sensor (APS) 2 signal input | Idle | Analog | 0.261 ~ 2.204 V |
57 | - |
|
|
|
58 | - |
|
|
|
59 | - |
|
|
|
60 | Sensor ground | Knocking | Variable |
|
Normal | Frequency |
| ||
61 | Knock Sensor (KS) signal input | Knocking | Variable |
|
Normal | Frequency |
| ||
62 | Sensor ground | Idle | DC voltage | Max. 50mV |
63 | Sensor ground | Idle | DC voltage | Max. 50mV |
64 | Injector (Cylinder #1) [Low] control output | Relay OFF | DC voltage | 71V |
Relay ON | Max. 1.0V | |||
65 | Injector (Cylinder #4) [Low] control output | Relay OFF | DC voltage | 71V |
Relay ON | Max. 1.0V | |||
66 | Injector (Cylinder #2) [Low] control output | Relay OFF | DC voltage | 71V |
Relay ON | Max. 1.0V | |||
67 | Injector (Cylinder #3) [Low] control output | Relay OFF | DC voltage | 71V |
Relay ON | Max. 1.0V | |||
68 | - |
|
|
|
69 | - |
|
|
|
70 | - |
|
|
|
71 | - |
|
|
|
72 | - |
|
|
|
73 | - |
|
|
|
74 | - |
|
|
|
75 | - |
|
|
|
76 | - |
|
|
|
77 | - | |||
78 | Fuel Level signal input | Idle | Analog | 0.193 ~ 4.0V |
79 | - |
|
|
|
80 | Ambient Temperature Sensor (ATS) signal input |
|
|
|
81 | - |
|
|
|
82 | Engine Coolant Temperature Sensor (ECTS) signal input | Idle | Analog | 0.270 ~ 4.77V |
83 | VS-/IP- (Common Ground for VS, IP) | Idle | DC voltage | Max. 50mV |
84 | VS+ (NERNST Cell Voltage) | Idle | Analog | 0 ~ 5.1V |
85 | Fuel Pressure Control Valve (FPCV) [Low] control output | Relay OFF | DC voltage | 16V |
Relay ON | Max. 1.0V | |||
86 | Fuel Pressure Control Valve (FPCV) [High] control output | Relay ON/OFF | DC voltage | 16V |
87 | - |
|
|
|
88 | - |
|
|
|
89 | - |
|
|
|
90 | - |
|
|
|
91 | - |
|
|
|
92 | - |
|
|
|
93 | - |
|
|
|
94 | - |
|
|
|
95 | - |
|
|
|
96 | - |
|
|
|
97 | - |
|
|
|
98 | - |
|
|
|
99 | - |
|
|
|
100 | - |
|
|
|
101 | - |
|
|
|
102 | - |
|
|
|
103 | Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2] signal input | Engine | Analog | Rich: 0.6 ∼ 1.0V |
Running | Lean: Max. 0.4V | |||
104 | Rc/Rp (Pump Cell Voltage) | Idle | Analog | 0 ~ 5.1V |
105 | Rc (Compensative Resistance) | Idle | Analog | 0 ~ 5.1V |

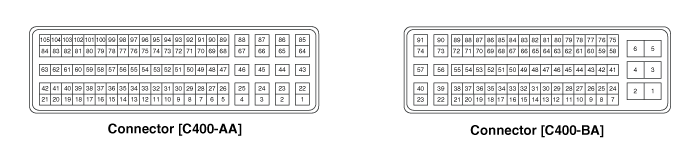

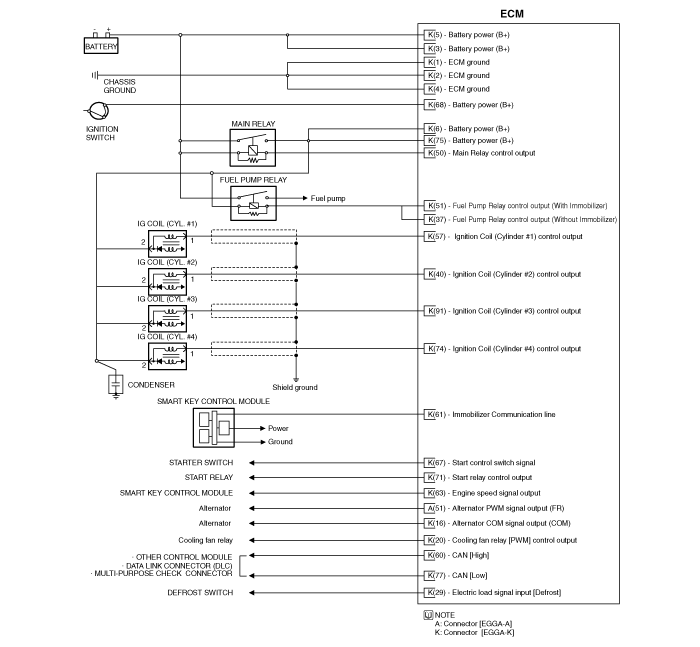

Pin No. | Description | Condition | Type | Level |
1 | ECM ground | Idle | DC voltage | Max. 50mV |
2 | ECM ground | Idle | DC voltage | Max. 50mV |
3 | Battery power (B+) | IG OFF | DC voltage | Max. 1.0V |
IG ON | Battery voltage | |||
4 | ECM ground | Idle | DC voltage | Max. 50mV |
5 | Battery power (B+) | IG OFF | DC voltage | Max. 1.0V |
IG ON | Battery voltage | |||
6 | Battery power (B+) | IG OFF | DC voltage | Max. 1.0V |
IG ON | Battery voltage | |||
7 | Sensor ground | Idle | DC voltage | Max. 50mV |
8 | Sensor ground | Idle | DC voltage | Max. 50mV |
9 | - |
|
|
|
10 | Sensor ground | Idle | DC voltage | Max. 50mV |
11 | - |
|
|
|
12 | - |
|
|
|
13 | Sensor power (+5V) | IG OFF | DC voltage | Max. 0.5V |
IG ON | 4.9 ~ 5.1V | |||
14 | - |
|
|
|
15 | Sensor power (+5V) | IG OFF | DC voltage | Max. 0.5V |
IG ON | 4.9 ~ 5.1V | |||
16 | Alternator PWM signal output [COM] | Idle | Pulse | High: Battery voltage |
Low: Max. 0.6V | ||||
17 | - |
|
|
|
18 | - |
|
|
|
19 | - |
|
|
|
20 | Cooling fan relay [PWM] control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.76V | |||
21 | - |
|
|
|
22 | ETC motor [-] control output | Idle | Pulse | High: Battery voltage |
Low: Max. 1.0V | ||||
23 | ETC motor [+] control output | Idle | Pulse | High: Battery voltage |
Low: Max. 1.0V | ||||
24 | - |
|
|
|
25 | Sensor ground | Idle | DC voltage | Max. 50mV |
26 | Manifold Absolute Pressure Sensor (MAPS) signal input | Idle | Analog | 0.6683 ~ 4.346V |
27 | Rail Pressure Sensor (RPS) signal input | Idle | Analog | 0.43 ~ 3.46V |
28 | Intake Temperature Sensor (IATS) signal input | Idle | Analog | 0.209 ~ 4.756V |
29 | Electric load signal input [Defrost] | ON | DC voltage | Battery voltage |
OFF | Max. 2.25V | |||
30 | - | |||
31 | - |
|
|
|
32 | - |
|
|
|
33 | - |
|
|
|
34 | - |
|
|
|
35 | - |
|
|
|
36 | Cooling fan relay [High] control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.76V | |||
37 | Fuel pump relay control output (Smart key type) | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.44V | |||
38 | - |
|
|
|
39 | CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] control output | Idle | Pulse | High: Battery voltage |
Low: Max. 1.65V | ||||
40 | Ignition coil (Cylinder #2) control output | Idle | Pulse | 1st voltage: 370 ~ 430V |
ON voltage: Max. 2.2V | ||||
41 | - |
|
|
|
42 | Sensor ground | Idle | DC voltage | Max. 50mV |
43 | - | |||
44 | A/C Pressure Transducer (APT) signal input | A/C ON | Analog | 0.348 ~ 4.63 V |
45 | - |
|
|
|
46 | Brake Light switch signal input | ON | DC voltage | Battery voltage |
OFF | Max. 2.25V | |||
47 | Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust] signal input | Idle | Pulse | High: min. 4.8V |
Low: Max. 0.6V | ||||
48 | - |
|
|
|
49 | Wiper switch signal input | ON | DC voltage | Battery voltage |
OFF | Max. 2V | |||
50 | Main relay control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.7V | |||
51 | Fuel pump relay control output (NON-Smart key type) | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.44V | |||
52 | - |
|
|
|
53 | - |
|
|
|
54 | - |
|
|
|
55 | - |
|
|
|
56 | CVVT Oil Control Valve (OCV) [Bank 1/Intake] control output | Idle | Pulse | High: Battery voltage |
Low: Max. 1.65V | ||||
57 | Ignition coil (Cylinder #1) control output | Idle | Pulse | 1st voltage: 370 ~ 430V |
ON voltage: Max. 2.2V | ||||
58 | - |
|
|
|
59 | - |
|
|
|
60 | CAN [High] | RECESSIVE | Pulse | 2.0 ~ 3.0V |
DOMINANT | 2.75 ~ 4.5V | |||
61 | Immobilizer communication line | When transmitting | Pulse | High: Min. 8.4V(at 14V) |
Low: Max. 6.44V(at 14V) | ||||
62 | LIN communication signal input | RECESSIVE | Pulse | max 5.6V (at 14V) |
DOMINANT | min 8.4V (at 14V) | |||
63 | Engine rpm signal | |||
64 | Vehicle speed signal input | Idle | Pulse | High: Min. 5.4V |
Low: Max. 2.25V | ||||
65 | - |
|
|
|
66 | Camshaft Position Sensor (CMPS) [Bank 1 / Intake] signal input | Idle | Pulse | High: min. 4.8V |
Low: Max. 0.6V | ||||
67 | Start signal input | ON | DC voltage | Battery voltage |
OFF | Max. 2V | |||
68 | Ignition switch signal input | IG OFF | DC voltage | Max. 1.0V |
IG ON | Battery voltage | |||
69 | - |
|
|
|
70 | - |
|
|
|
|
| |||
71 | Start relay control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 2.64V | |||
72 | - |
|
|
|
73 | - |
|
|
|
74 | Ignition coil (Cylinder #4) control output | Idle | Pulse | 1st voltage: 370 ~ 430V |
ON voltage: Max. 2.2V | ||||
75 | Battery power (B+) | IG OFF | DC voltage | Max. 1.0V |
IG ON | Battery voltage | |||
76 | - |
|
|
|
77 | CAN [Low] | RECESSIVE | Pulse | 2.0 ~ 3.0V |
DOMINANT | 0.5 ~ 2.25V | |||
78 | Sensor ground | Idle | DC voltage | Max. 50mV |
79 | Crankshaft Position Sensor (CKPS) [A] signal input | Idle | Pulse | Vp_p: Min. 1.0V |
80 | Sensor ground | Idle | DC voltage | Max. 50mV |
81 | - | |||
82 | - | |||
83 | A/C compressor relay control output | Relay OFF | DC voltage | Battery voltage |
Relay ON | Max. 1.0V | |||
84 | RCV control solenoid valve control output |
|
|
|
85 | - | |||
86 | - |
|
|
|
87 | - |
|
|
|
88 | - |
|
|
|
89 | Waste Gate Solenoid Valve (WGV) control output |
|
|
|
90 | - |
|
|
|
91 | Ignition coil (Cylinder #3) control output | Idle | Pulse | 1st voltage: 370 ~ 430V |
ON voltage: Max. 2.2V |
