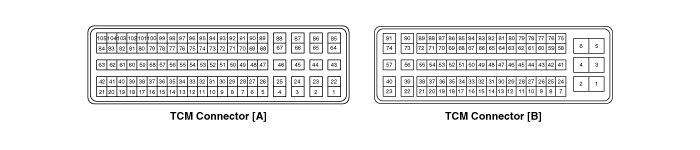

Pin | Description | Pin | Description |
22 | Overdrive clutch control solenoid valve (VFS-OD) | 73 | Inhibitor switch signal "S4" |
23 | Pressure cont solenoid (VFS-LINE) | 74 | Inhibitor switch signal "S2" |
26 | ON/OFF solenoid valve B (SS-B) | 75 | Inhibitor switch signal "S3" |
37 | Sports mode up switch | 87 | Solenoid power 1 |
38 | Sports mode select switch | 88 | Solenoid power 2 |
39 | Oil temperature sensor (+) | 89 | ON/OFF solenoid valve A (SS-A) |
43 | Underdrive brake control solenoid valve (UD/B_VFS) | 94 | Inhibitor switch signal "S1" |
44 | 35R clutch control solenoid valve (35R/C_VFS) | 95 | Output speed sensor power |
45 | Torque converter control solenoid (T/CON_VFS) | 96 | Input speed sensor power |
46 | 26 brake control solenoid valve (26/B_VFS) | 99 | Input speed sensor signal |
58 | Sports mode down switch | 100 | Output speed sensor signal |
59 | Oil temperature sensor (-) |
|
|
Pin | Description | Pin | Description |
1 | GND (Power) | 5 | VB |
2 | GND (Power) | 60 | CAN High |
3 | VB (Battery voltage) | 68 | IG.1 ( Ignition key) |
4 | Ground (Power) | 77 | CAN Low |
Pin | Description | Condition | Input/output value | |
Type | Level | |||
22 | Overdrive clutch control solenoid valve (OD/C_VFS) | - | Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
23 | Line pressure control solenoid valve (LINE_VFS) | - | Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
26 | ON/OFF solenoid valve B(SS-B) | High | Output | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
37 | Sports mode up switch | Up ON | Input | 0V/Battery voltage level |
Other | 9V < Battery voltage level < 16V | |||
38 | Sports mode select switch | Sport mode | Input | 0V/Battery voltage level |
Other | 9V < Battery voltage level < 16V | |||
39 | Oil temperature sensor (+) | ON | Input | 0V/3.3V |
OFF | ||||
43 | Underdrive brake control solenoid valve (UD/B_VFS) | - | Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
Power supply : V_SOL2 | ||||
44 | 35R clutch control solenoid valve (35R/C_VFS) | - | Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
45 | Torque converter control solenoid valve (T/CON_VFS) | - | Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
46 | 26 brake control solenoid valve (26/B_VFS) | - | Output | 0V/Battery voltage level |
9V < Battery voltage level < 16V | ||||
Power supply : V_SOL2 | ||||
58 | Sports mode down switch | Down ON | Input | 0V/Battery voltage level |
Other | 9V < Battery voltage level < 16V | |||
59 | Oil temperature sensor (-) | - | Ground | 0V |
73 | Inhibitor switch signal "S4" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
74 | Inhibitor switch signal "S2" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
75 | Inhibitor switch signal "S3" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
89 | ON/OFF solenoid valve A (SS-A) | High | Output | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
94 | Inhibitor switch signal "S1" | High | Input | 0V/Battery voltage level |
Low | 9V < Battery voltage level < 16V | |||
95 | Output speed sensor power | ON | Power | 0V/7.5V |
OFF | ||||
96 | Input speed sensor power | ON | Power | 0V/7.5V |
OFF | ||||
99 | Input speed sensor signal | High | Input | 0.7V/1.4V |
Low | ||||
100 | Output speed sensor signal | High | Input | 0.7V/1.4V |
Low | ||||
