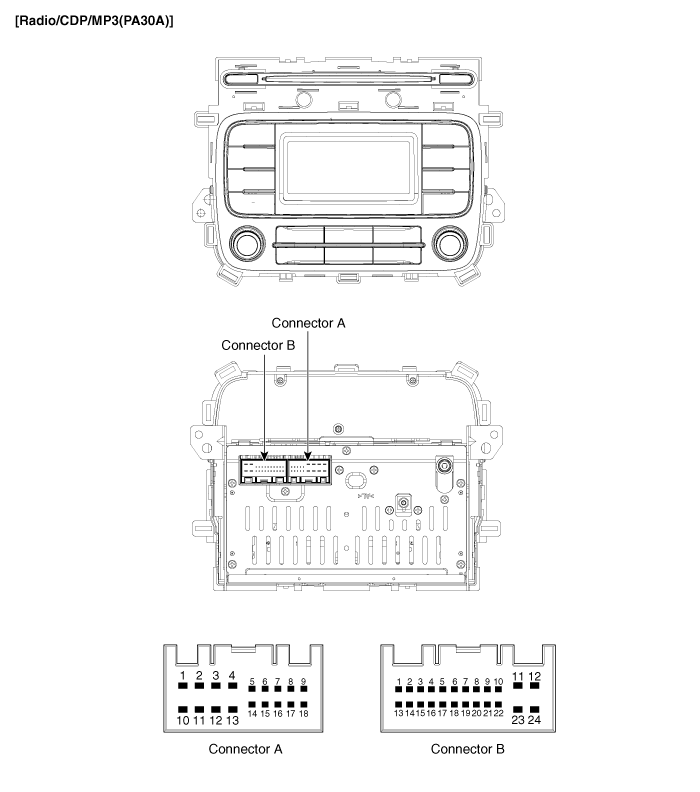

No. | Connector A | Connector B |
1 | Rear left speaker (+) | - |
2 | Front left speaker (+) | - |
3 | Front right speaker (+) | - |
4 | Rear right speaker (+) | Steering remocon |
5 | - | - |
6 | - | USB data line D (+) |
7 | - | USB/ iPod VDD |
8 | Illumination (+) | AUX R input |
9 | Detent | AUX ground |
10 | Rear left speaker (-) | Mic (+) (Bluetooth) |
11 | Front left speaker (-) | ACC |
12 | Front right speaker (-) | Battery (+) |
13 | Rear right speaker (-) | - |
14 | - | - |
15 | - | - |
16 | - | Vehicle speed |
17 | Illumination (-) | Remote control ground |
18 | Remote antenna | USB data line D (-) |
19 |
| USB/ iPod ground |
20 | AUX detect | |
21 | AUX L input | |
22 | Mic (-) (Bluetooth) | |
23 | - | |
24 | Power ground |

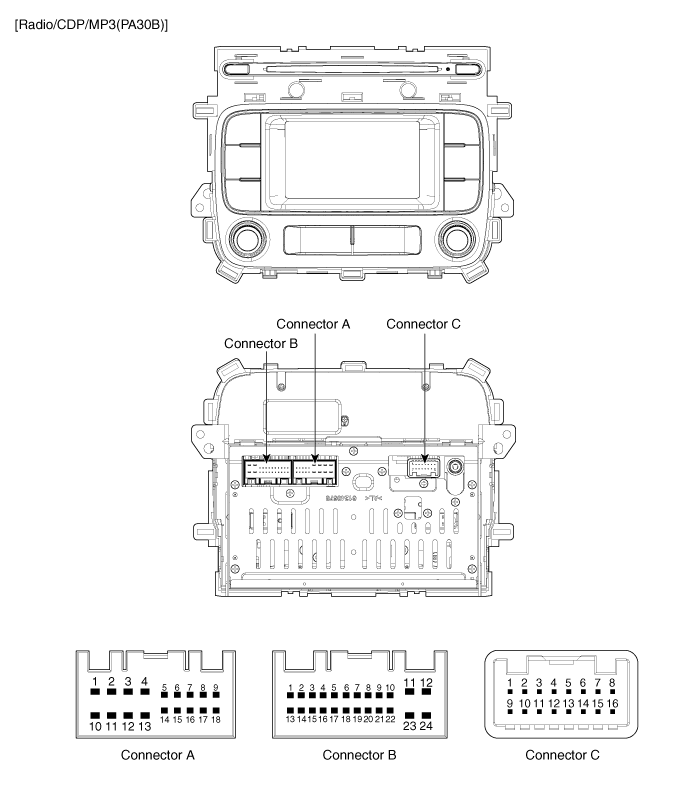

No. | Connector A | Connector B | Connector C |
1 | Rear left speaker (+) | - | - |
2 | Front left speaker (+) | - | - |
3 | Front right speaker (+) | - | Camera GND |
4 | Rear right speaker (+) | Steering remote | Camera video input |
5 | - | - | - |
6 | - | USB D(+) | - |
7 | - | USB/iPod VDD | - |
8 | Illumination (+) | AUX R Input | - |
9 | - | AUX gorund | - |
10 | Rear left speaker (-) | MIC(+) (Bluetooth) | Camera battery (+) |
11 | Front left speaker (-) | ACC | Power GND |
12 | Front right speaker (-) | B(+) | Gear R |
13 | Rear right speaker (-) | - | - |
14 | - | - | - |
15 | - | Auto light | - |
16 | - | Vehicle speed | - |
17 | Illumination (-) | Remote GND |
|
18 | Remote antenna | USB D(-) | |
19 |
| USB/iPod GND | |
20 | AUX detect | ||
21 | AUX L Input | ||
22 | MIC(-) (Bluetooth) | ||
23 | - | ||
24 | Power GND |
