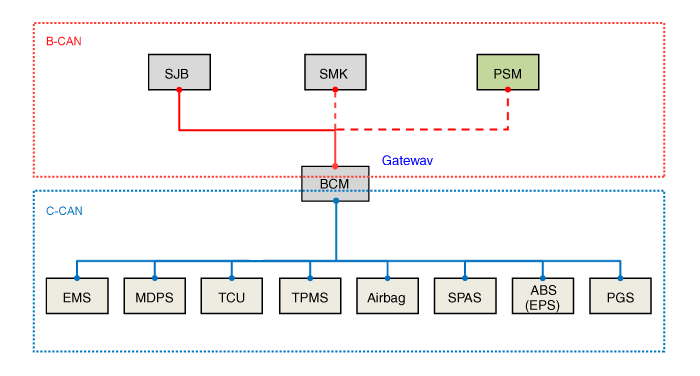

Function | Description | |
Input | Output | |
Front Washer & Wiper | - IGN2 On & WasherS/W On and Off | - Controlling Wiper Rly for 2.5~3.8 sec. |
Front INT Wiper | - IGN2 On & Front Wiper Int S/W On | - Controlling Wiper Rly On/Off with 2.2~10 sec period depending on INT_Volume (5Step) |
Front MIST Wiper | - IGN2 On & Mist S/W On | - Controlling Wiper Rly On during Mist S/W On (700msec) |
DRV Seatblet Reminder | - IGN On while belt off | - Seat Belt Indicator On until belt on |
- IGN On while belt on | - Seat Belt Indicator On for 6 sec. | |
- IGN On & Vehicle Speed > 6km/h while belt off | - Seat Belt Indicator On | |
- IGN On & Vehicle Speed > 9km/h while belt off | - Seat Belt Indicator blinking | |
- IGN On & Vehicle Speed > 20km/h while belt off | - Seat Belt Indicator blinking and buzzer warning starting | |
- when IGN On & Vehicle Speed > 20km/h while belt [on→off] | - Seat Belt Indicator blinking and buzzer warning starting | |
- when Vehicle Speed > 20km/h & belt Off and Seatbelt Indicator Blinking and buzzer warning, belt On | - Seat Belt Indicator Off and Buzzer Off | |
AST Seatbelt Reminder | - IGN On while belt off | - Seat Belt Indicator On until belt on |
- IGN On while belt on | - Seat Belt Indicator On for 6 sec. | |
- IGN On & Vehicle Speed > 9km/h while belt off | - Seat Belt Indicator blinking | |
- IGN On & Vehicle Speed > 20km/h while belt off | - Seat Belt Indicator blinking and buzzer warning starting | |
Rear Seatbelt Reminder | - IGN on while rear seat belt off | - Rear Seat Belt Indicator On |
- Alternator On and Rear Seat Belt Off | - Rear Seat Belt Indicator On for 35 sec. after that Indicator turn off | |
- Alternator On and Rear Seat belt off → 35 sec → Vehicle Speed > 20km/h | - Rear Seat Belt Indicator On for 35 sec. again | |
- Vehicle Speed >20km/h & Rear Seat belt [On→Off] | - Seat Belt Indicator and warning buzzer pattern starting (PATTERN : 6sec on / 24sec off X 11times) | |
Key Operated Warning | - (Key In or SMK ACC) S/W On & Driver door open | - Key Operated Buzzer Warning starting |
Parking Start Warning | - IGN1 On & Parking Brake S/W On & Vehicle Speed > 5km/h | - Parking Brake Buzzer Warning Starting |
PAS/RPAS Warning | - Gear Position R and PAS/RPAS Sensors detecting warning | - PAS/RPAS Warning Starting according to warning level from PAS/RPAS Sensors |
Power Window/ Safety Power Window | - IGN1 On | - Power Window/Safty Power Window enable all the time |
- IGN1 Off | - 30sec. After IGN 1 turned off, Power Window/ Safty Power Window disable | |
- less than 30 sec. after IGN1 turned off, and Drv Door Open | - Power window/Safty Power Window disable immediately | |
Rear Defogger/ Front Deicer | - IGN1 On & Alternator On & Defogger S/W On | - Defogger On & Deicer On for 20 min. |
Room Lamp | - Any Door Open | - Room Lamp On for 20min. |
- All Door Closed & Key [On→Off] & Any Door Unlock | - Room Lamp On for 30sec. | |
- All Door Closed & Key [On→Off] & All Door Lock | - Room Lamp Off | |
- Tx Unlock | - Room Lamp On for 30sec. | |
- Tx Lock while Room Lamp On | - Room Lamp Off | |
IGN Key Holl Illumination | - IGN1 Off & Door open | - Key Illumi Lamp On for 20min. |
- IGN1 Off & Door [open→close] | - Key Illumi Lamp On for 30sec. | |
Key Inter Lock | - IGN1 On or ACC On & Key inter lock S/W On | - Key Solenoid On |
ATM Shift Lock | - IGN1 On & Inhibit P On & Brake S/W On | - ATMSOL On |
Tail Lamp | - Tail lamp S/W On | - Tail Lamp On |
Tail Lamp Auto Cut | - Key In & Tail S/W On → Key Off → Drv Door Open | - Tail Lamp Off |
- key In & Tail S/W On → Key Off → Drv Door Open → Tail S/W [Off→On] | - Tail Lamp On | |
Auto Light | - IGN1 On & Autolight S/W On with day light condition | - Tail lamp Off, Headlamp Off |
- IGN1 On & Autolight S/W On with night light condition | - Tail lamp On, Headlamp On | |
- IGN1 on & Autolight S/W on with day light condition → night light condition | - 2.5sec. after sensing night light condition, Tail lamp On and Headlamp On | |
- IGN1 on & Autolight S/W on with night light condition → day light condition | - 2.5sec. after sensing day light condition, Tail lamp Off and Headlamp Off | |
Head Lamp | - IGN2 On & Headlamp S/W On | - Head Lamp On |
Escort | - IGN2 On, HeadLamp S/W On → IGN Off | - Head Lamp On & Tail Lamp On for 5min. |
- IGN2 On, HeadLamp S/W On → IGN Off → Driver Door Open → Drive Door Close | - Head Lamp On for 15sec, and Tail Lamp On for 15sec. | |
Welcome | - Headlamp S/W On & All Door Closed & All Door Locked & Key Off & TX Unlock | - Headlamp On & Tail lamp On for 15 sec. |
- Headlamp S/W On & All Door Closed & All Door Locked & Key Off & TX Unlock → TX Lock before 15 sec timer expirsed | - Headlamp Off just after TX Lock | |
- Autolight S/W On & night light condition & All Door Closed & All Door Locked & Key Off & TX Unlock | - Headlamp On & Tail lamp On for 15sec. | |
DRL | - IGN2 On & Alternator On and DRL Option On & H/Lamp S/W Off & Front fog Off | - DRL On |
- IGN2 On & Alternator On and DRL Option On & Tail lamp S/W Off | - DRL On | |
- IGN2 On & Alternator On and DRL Option On & Tail lamp S/W [Off→On] | - DRL Off | |
Front Fog Lamp | - Front Fog S/W On when IGN2 On & Tail lamp On | - Front Fog Lamp on |
Rear Fog Lamp | - Rear Fog S/W On when IGN2 On & Tail Lamp On & Front Fog Lamp On | - Rear Fog Lamp on |
- Rear Fog S/W On when IGN2 On & Tail Lamp On & HeadLamp On | - Rear Fog Lamp on | |
Puddle Lamp/ Pocket Lamp | - SMK Option & Tx UnLock | - Puddle Lamp On |
- SMK Option & Tx Lock | - Puddle Lamp Off | |
AV Control | - Autolight sensing with day light condition | - AV Tail On |
- Autolight sensing with night light condition | - AV Tail Off | |
Central Lock/ Unlock | - P/WDW Lock S/W On or Tx Lock | - All Door Lock |
- P/WDW Unlock S/W On or Tx Unlock | - All Door Unlock | |
Key Reminder | - Key On & Driver/Assist door Open & P/WDW Lock S/W On | - All Door Unlock. If knob keeps being in lock, BCM retries unlock 3 times |
- Key On & Driver/Assist Door Open & Driver/Assist Knob changes unlock → lock | - All Door Unlock. If knob keeps being in lock, BCM retries unlock 3 times | |
Passive Reminder | - Passive Reminder signal received from SMK | - All Door Unlock and Buzzer warning starts |
Crash Unlock | - Key On & Crash Signal received | - All Door Unlock for 5 sec. |
Speed Sensing Auto door Lock | - IGN1 On & Alternator On & Any Door Unlock & Vehicle Speed >15km/h | - All Door Lock |
- IGN1 On & Alternator On & Vehicle Speed >15km/h & All Door Lock → Any Door unlock | - All Door Lock | |
Shift-Lever Auto door Unlock | - IGN1 On & Alternator On & Shift-Lever Position [P] → not [P] | - All Door Unlock |
Key Off Auto Door Unlock | - Any Door Lock & Key [In] → [Off] | - All Door Unlock |
Tail Gate Release | - All Door Unlock & Tail Gate Open S/W On | - Tailgate Release |
- Passive Tailgate signal received | - Tailgate Release | |
Security Indicator | - Tx Lock & after 30sec (Burglar Alarm State – ARM) | - 0.32sec On / 2sec Off |
Outside Mirror Auto Folding/ Unfolding | - Pwdw Mirror S/W Auto Position & Tx Unlock | - Mirror Unfold |
- Pwdw Mirror S/W Auto Position & Tx Lock | - Mirror Fold | |
Sunroof Open | - SunRoof Open State → IGN Off → Drv Door Open | - SunRoof Open Warning By Cluster 7sec |
Navigation Wakeup | - Key Out & Tx Unlock/Passive Unlock received | - Navigation Wakeup Signal sends - No re-send within 1 min. |
Anti Theft | - All Door Closed & Key Off & Tx Lock & All Door Closed | - Armwait for 30 sec. - Arm after 30 sec. without any interrupts |
- [Arm state] Door open without Tx unlock/Passive Unlock signal | - Horn activates, Hazard lamp blinks | |
Panic | - Tx Panic | - Horn activates, Hazard lamp blinks |
