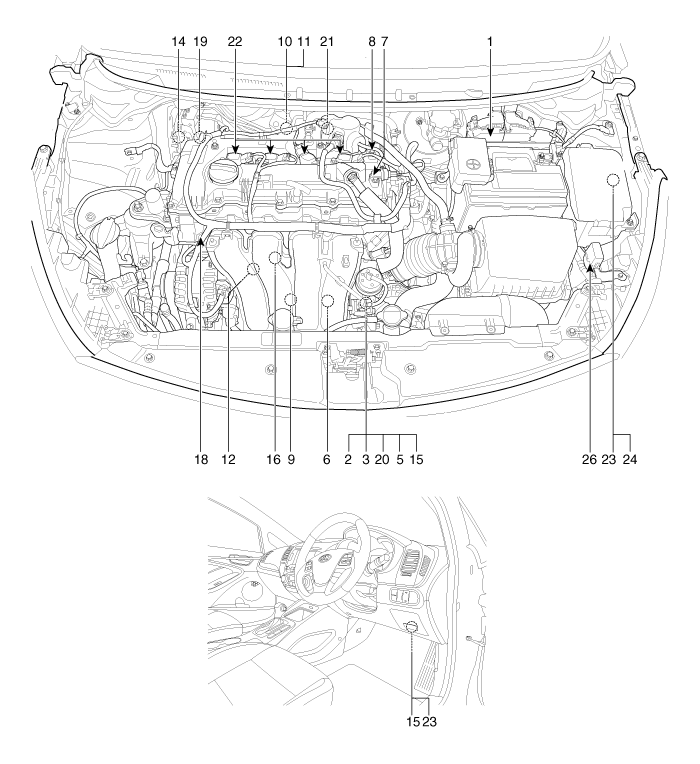

1. Engine Control Module (ECM)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)
20. Variable Intake Solenoid (VIS) Valve
4. Engine Coolant Temperature Sensor (ECTS)
5. Throttle Position Sensor (TPS)
15. ETC Motor
6. Crankshaft Position Sensor (CKPS)
7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
9. Knock Sensor (KS)
10. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
11. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
12. Rail Pressure Sensor (RPS)
16. Injector
13. Accelerator Position Sensor (APS)
14. A/C Pressure Transducer (APT)
17. Purge Control Solenoid Valve (PCSV)
18. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
19. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
21. Fuel Pressure Control Valve (FPCV)
22. Ignition Coil
23. Main Relay [EMS Box]
24. Fuel Pump Relay [EMS Box]
25. Data Link Connector (DLC) [16-Pin]
26. Multi-Purpose Check Connector [20-Pin]
