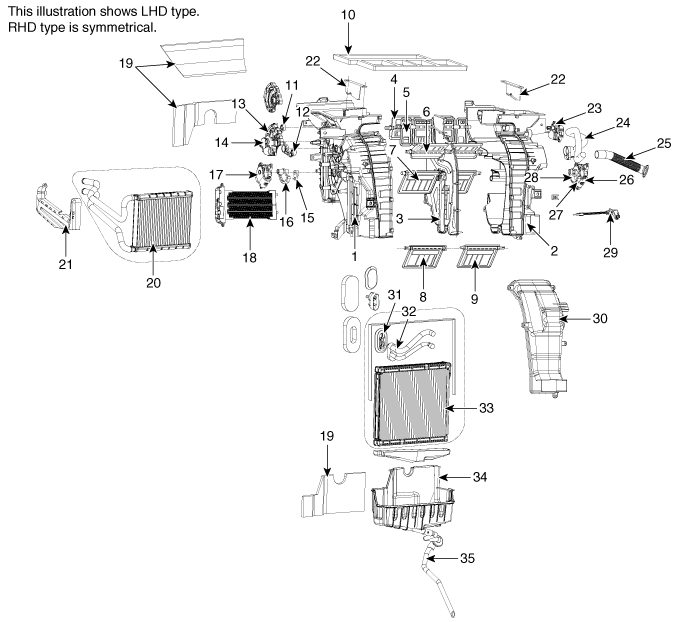

1. Heater Case (Left)

2. Heater Case (Right)

3. Console Separator

4. Defog Door

5. Vent Door

6. Floor Door

7. Mix Door (Manual)

8. Mix Door (DATC-Left)

9. Mix Door (DATC-Right)

10. Seal

11. Vent Arm

12. Floor Arm

13. Mode Cam

14. Mode Actuator

15. Temperature Door Arm

16. Temperature Door Lever

17. Temperatuer Control Actuator (DATC)

18. PTC Heater (GSL)

19. Anti Noise Pad (B)

20. Heater Core

21. Heater Pipe Cover

22. Separator

23. Defog Actuator

24. Intake Hose

25. Cooling Hose

26. Temperature Control Actuator

27. Door Arm

28. Temperature Door Lever

29. Evaporator Temperature Sensor

30. Console Cover

31. Evaporator Pipe Grommet

32. Evaporator Pipe

33. Evaporator Core

34. Heater & Evaporator Lower Case

35. Drain Hose
