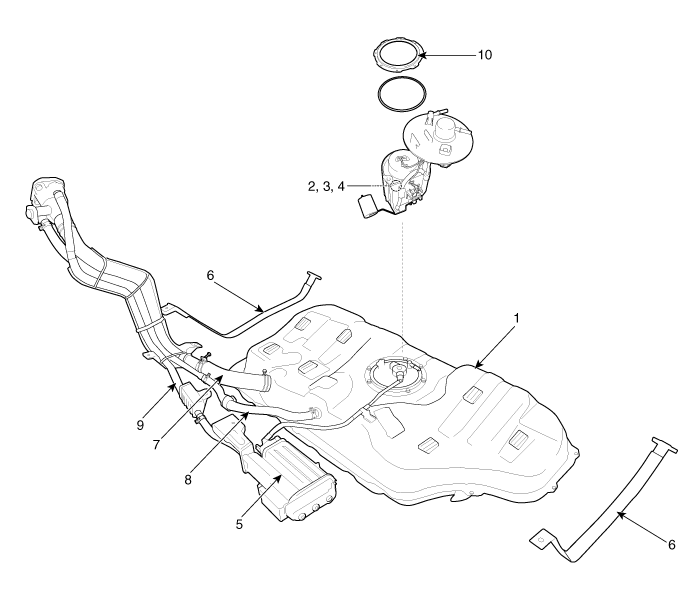

Components Location

1. Fuel Tank

2. Fuel Pump

3. Fuel Filter

4. Fuel Pressure Regulator

5. Canister

6. Fuel Tank Band

7. Fuel Filler Hose

8. Ventilation Hose

9. Vapor Tube

10. Fuel Pump Plate Cover

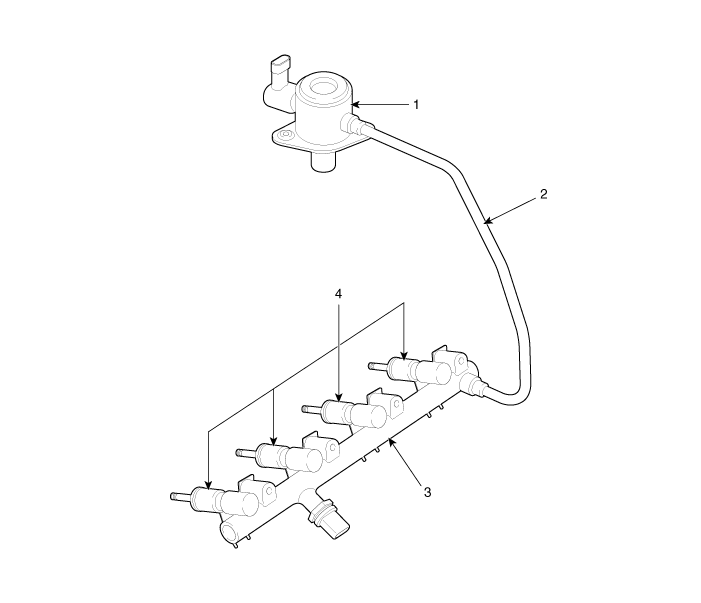

[High Pressure Fuel Line]

1. High Pressure Fuel Pump

2. High Pressure Fuel Pipe

3. Delivery Pipe

4. Injector

warning

In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don’t do any repair work right after engine stops.
