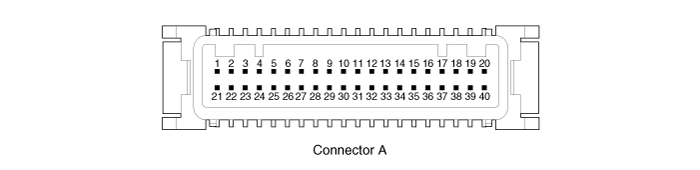

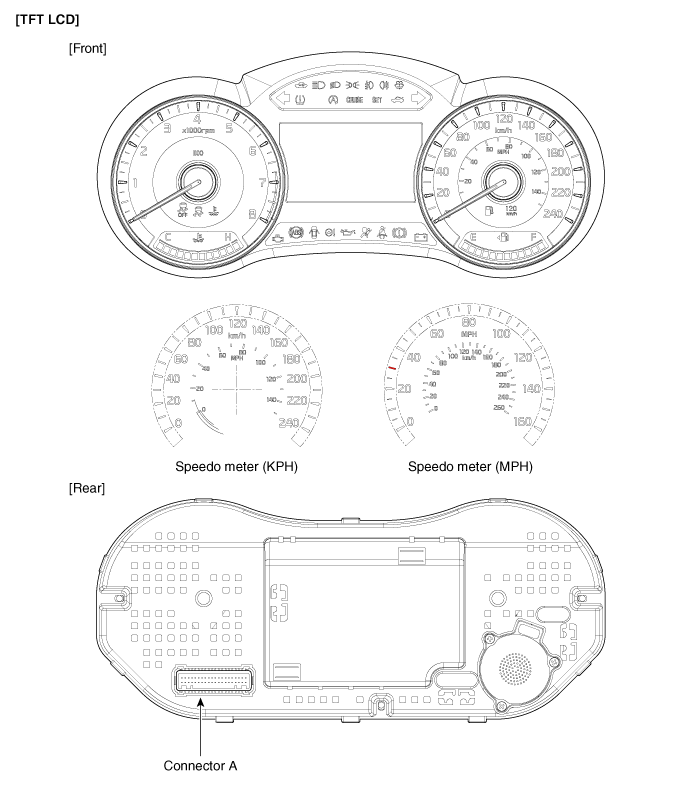

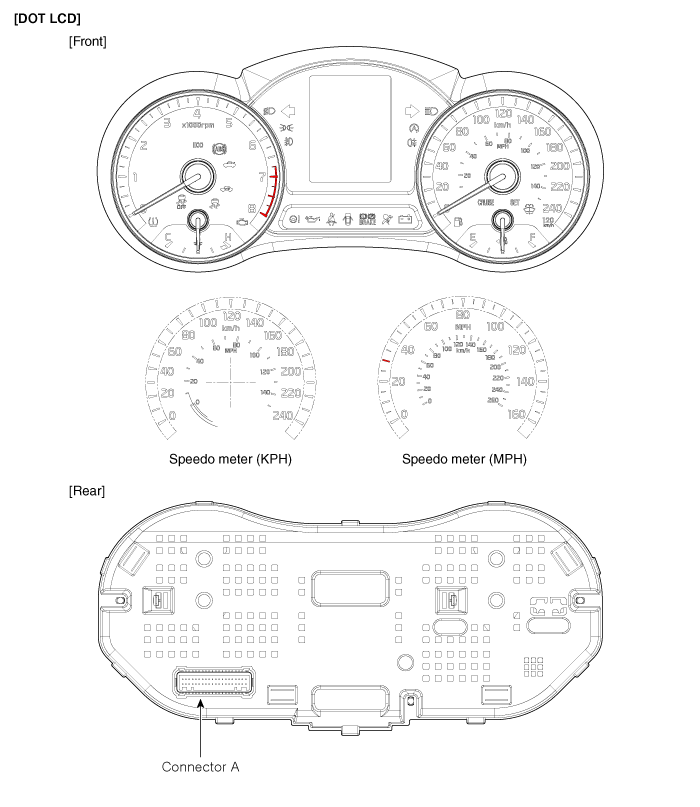

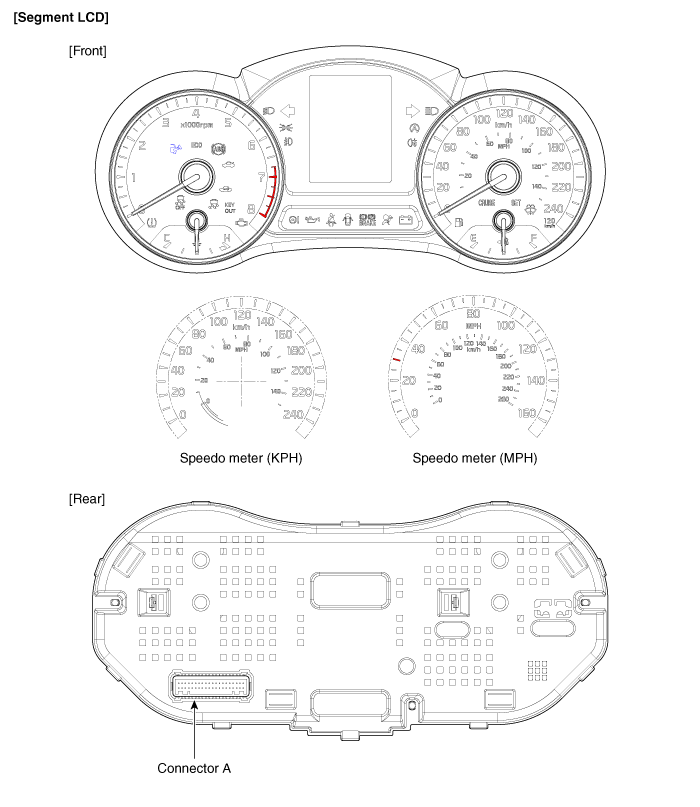

No. | Description | No. | Description |
1 | Alternator L output | 21 | Battery (+) |
2 | DC 12V input (Battery (+)) | 22 | Ignition (+) |
3 | Air bag (+) | 23 | Illumination (+) |
4 | Rheostat up switch | 24 | - |
5 | Rheostat down switch | 25 | Signal ground 1 |
6 | Oil pressure | 26 | - |
7 | Acitve ECO | 27 | MM CAN High (TFT only) |
8 | Battery charge | 28 | MM CAN Low (TFT only) |
9 | Low washer | 29 | - |
10 | Immobilizer | 30 | C CAN High |
11 | Steeering wheel input (DOT/TFT only) | 31 | C CAN Low |
12 | Trip switch 1 (+) | 32 | - |
13 | Trip (-) | 33 | Signal ground 2 |
14 | AT S output | 34 | Fuel (-) |
15 | AT R output | 35 | Fuel (+) |
16 | AT D output | 36 | 5V output (FFV sender) |
17 | AT N output | 37 | Trip switch 2 (+) |
18 | AT P output | 38 | Speed input (M/T) |
19 | Detent output | 39 | Ice warning input |
20 | 4P output | 40 | Illumination (-) output |
