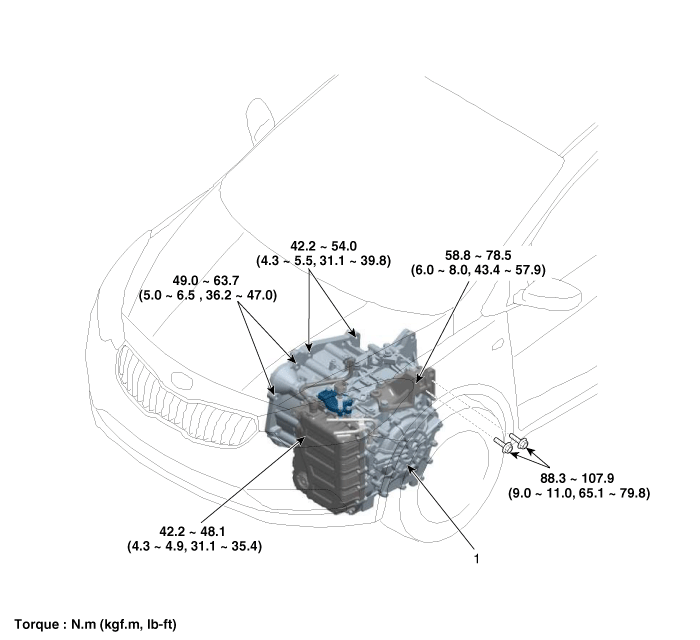

Components Location

1. Automatic transaxle

Components

1. Converter housing

2. Shift cable bracket

3. Automatic transaxle case

4. Rear cover

5. Valve body cover

6. Manual control lever

7. Air breather hose

8. Inhibitor switch

9. Solenoid valve connector

10. Oil cooler tube

11. Injection hole (eyebolt)
