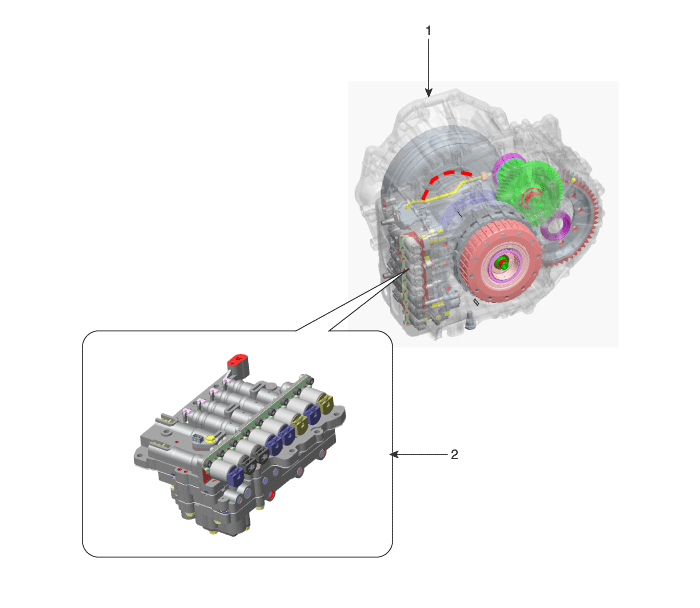

Components Location

1. Automatic transaxle

2. Valve body assembly

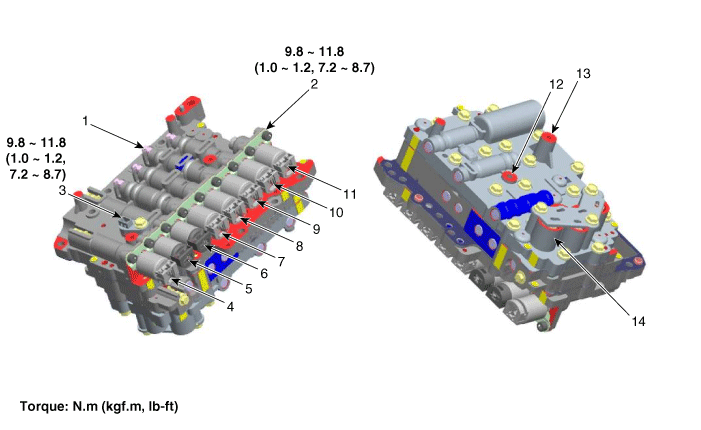

1. Pressure Control Valve(PCV) adjust screw

2. Solenoid valve bracket

3. Oil temperature sensor

4. Line Pressure Control Solenoid Valve

5. SS-A Solenoid Valve(ON/OFF)

6. SS-B Solenoid Valve(ON/OFF)

7. Overdrive Clutch Control Solenoid Valve(OD/C)

8. Underdrive Brake Control Solenoid Valve(UD/B)

9. 26 Brake Control Solenoid Valve(26/B)

10. 35R Clutch Control Solenoid Valve(35R/C)

11. Torque Converter Control Solenoid Valve (T/CON)

12. Accumulator

13. Low & reverse brake(LR/B)pressure flow hole

14. Under drive brake(UD/B)pressure flow hole

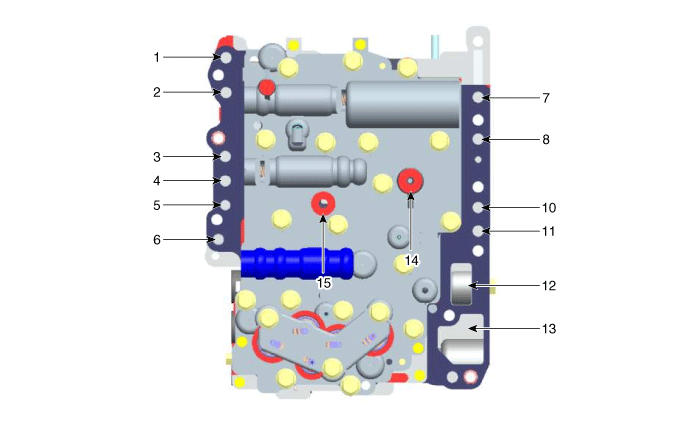

Valve Body Flow

1. To cooler

2. From cooler

3. Lubrication(rear)

4. OD Clutch pressure

5. Reducing pressure (red2)

6. Reducing pressure (red1)

7. From damper pressure

8. To damper pressure

9. Lubrication(front)

10. 35R Clutch pressure

11. 26 Brake pressure

12. From oil pump

13. To oil pump

14. Underdrive(UD) Brake pressure

15. Low & reverse pressure
