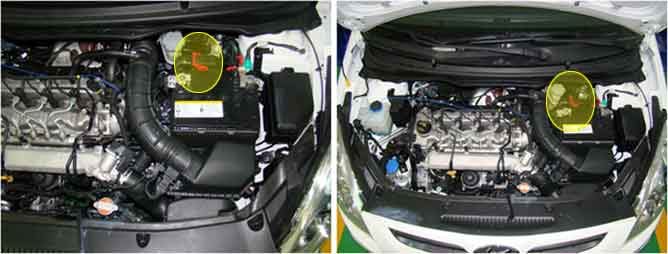

Atmospheric sensor is installed in ECM and senses atmospheric pressure where the vehicle is.
Based on singal of atmospheric sensor, air density is calculated. And atmospheric sensor is used to detect mass air flow with MAFS, IATS.
This sensor is required to perform 1) fuel injection quantity correction in high altitude and 2) EGR control.
Atmospheric pressure is fixed at 900hpa when atmospheric sensor fails.
P2228 is set when the voltage below 100mV - minimum output voltage of Atmospheric pressure sensor - is detected for more than 5 sec. This code is due to fhe failure of the sensor inside of ECM.
Item | Detecting Condition | Possible Cause | ||
DTC Strategy |
•
Voltage Monitoring |
•
Atmospheric pressure sensor(ECM component) | ||
Enable Conditions |
•
IG KEY "ON" | |||
Threshold Value |
•
When output voltage is below the minimum value.(below 100mV ) | |||
Diagnostic Time |
•
12.5sec | |||
Fail Safe | Fuel Cut | NO |
•
Atmospheric pressure is fixed at 900hpa. | |
EGR Off | YES | |||
Fuel Limit | YES | |||
MIL | NO | |||
hpa (hecto pascal) | mb | mmHg |
1013 | 1013 | 760 |
