CHECK SOLENOID VELVE

(1)

Ignition "OFF".

(2)

Disconnect "A/T SOLENOID VALVE" connector

(3)

Measure resistance between "PCSV-B(2-4BRAKE)" terminal and "Ground" terminal of the ATM SOLENOID VALVE harness connector

Specification: Approximately 3.5 ± 0.2 Ω (25℃)

(4)

Is resistance within specifications?

	▶ RGo to "CHECK PCM/TCM" as below
	▶ Replace PCSV-B(2-4SOLENOID VALVE) as necessary and go to "Verification Vehicle Repair" procedure

CHECK PCM/PCM/TCM

(1)

Connect GDS to data link connector(DLC)

(2)

Ignition "ON" & Engine "OFF".

(3)

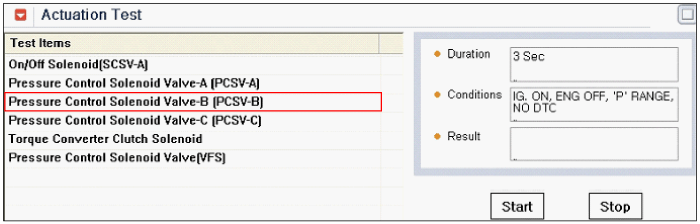

Select A/T Solenoide valve Actuator test and Operate Actuator test.

(4)

Is Actuator Testing performed normally ?

	▶ Go to "Verification Vehicle Repair" procedure
	▶ Replace PCM/TCM as necessary and Go to "Verificaiton Vehicle Repair" procedure

ACTUATOR TEST CONDITION

1. IG SWITCH ON

2. TRANSAXLE RANGE SWITCH is normal

3. P RANGE

4. Vehicle Speed 0km/h

5. Throttle position sensor＜ 1V

6. IDLE SWITCH ON

7. ENGINE RPM 0
