4.
Monitor the "STEERING ANGLE SNSR" parameters on the GDS.

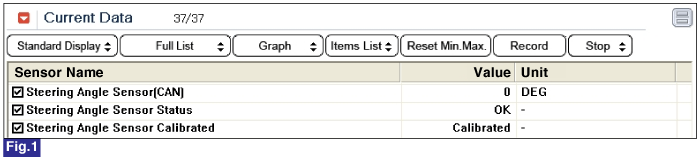

Fig 1) Test Condition : Ignition "ON" & Engine "ON".
Connect GDS to Data Link Connector(DLC)
IG "ON" & ENG "ON".
Turn the steering wheel to the left or right.
Monitor the "STEERING ANGLE SNSR" parameters on the GDS.
Fig 1) Test Condition : Ignition "ON" & Engine "ON".
Whenever steering wheel is turned, is the steering sensor’s GDS data changed?
 | ▶ Fault is caused by having been repaired and HECU memory was not cleared. Clear the DTC and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Terminal and Connector Inspection" procedure. |
