4.
Inspect operating status of Motor with Actuation Test.
Specification : It’s normal if operating sound is heard.

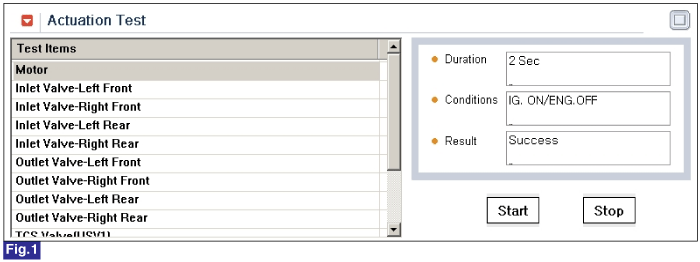

Fig.1) Test Condition : Ignition "ON".
Connect GDS to Data Link Connector(DLC)
IG "ON".
Select the "Actuation Test" mode on the GDS.
Inspect operating status of Motor with Actuation Test.
Specification : It’s normal if operating sound is heard.
Fig.1) Test Condition : Ignition "ON".
Does motor operate normally?
 | ▶ Fault is intermittent caused by poor connection in power harness and/or HECU's connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Terminal and Connector Inspection" procedure. |
