4.
Monitor the "Steering Angle Sensor" parameters on the GDS.

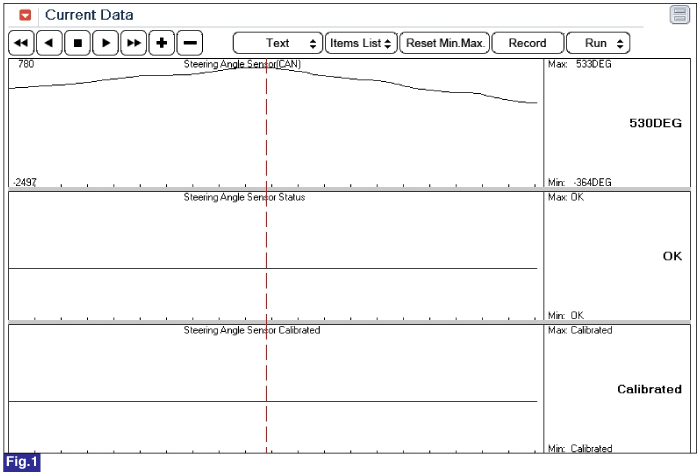

Fig 1) Test Condition : Ignition "ON" & Engine "ON".
Connect GDS to Data Link Connector(DLC)
IG "ON" & ENG "ON".
Turn the steering wheel to the left or right.
Monitor the "Steering Angle Sensor" parameters on the GDS.
Fig 1) Test Condition : Ignition "ON" & Engine "ON".
Whenever steering wheel is turned, is the steering sensor’s GDS data changed?
Connect GDS to Data Link Connector(DLC).
IG "ON" & ENG "ON".

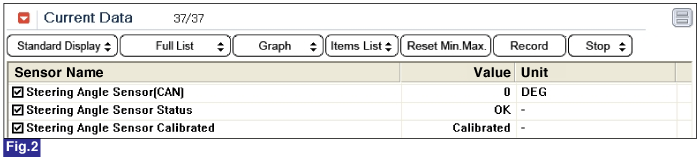

Keep the steering wheel in ceter position.
Monitor the "STEERING ANGLE SNSR" parameters on the GDS.
Specification : Approx. 0 DEG
Is parameter displayed within specifications?
| ▶ Go to "Component Inspection" procedure. |
 | ▶ Go to next step. (6) |
▶ Go to "Terminal and Connector Inspection" procedure.
Perform steering angle sensor calibration.
IG "ON".
Line up the steering wheel in a straight.
Connect GDS to Data Link Connector(DLC).
Go in Elec. Power Steering system.

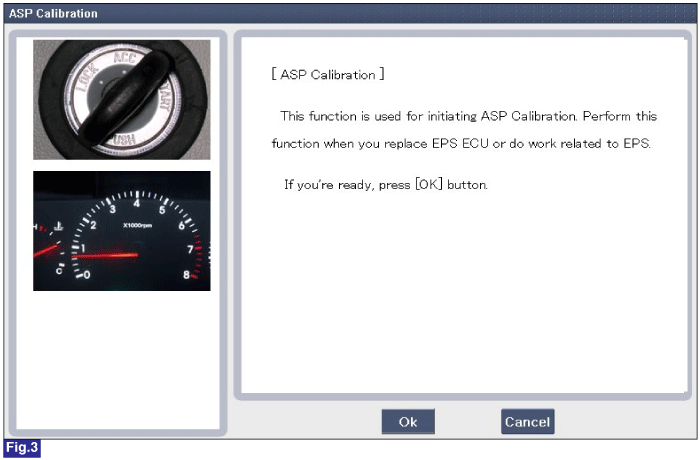

Perform ASP calibration. (figure 3).
Go to "Component Inspection" Precedure.
