CAN communication is circuit, consists of CAN low line, CAN high line and two resister, installed in Cluster and PCM, to communicate with each control module(PCM, TCM, ABS).

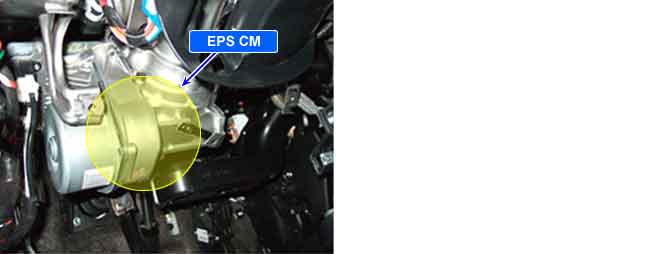

DTC C1616 is set when EPS(MDPS) CM detects CAN communication error.
Item | Detecting Condition | Possible cause |
DTC Strategy |
•

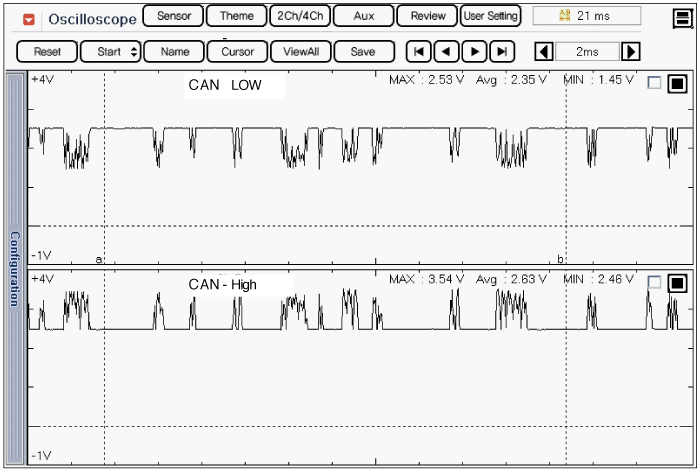

CAN Signal Check |
•
Poor connection
•
Power supply to each Module
•
Open or short in PCM communication line
•
Open or short in EPS(MDPS) communication line
•
120Ω register( Inside I/P JUNCTION BOX)
•
PCM |
Enable Conditions |
•
IG ON | |
Threshold value |
•
Failure on CAN communication line for more than 5 sec |
