Monitor GDS Data
1.

Connect GDS to Data Link Connector (DLC).

2.

ENGINE "ON".(Engine coolant temp. below 70℃,Intake air temp. below 5℃)

3.

Blower switch "ON".

4.

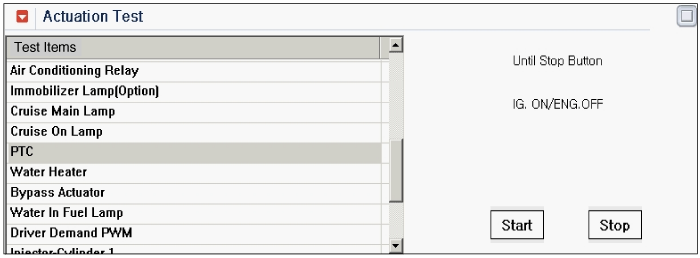

Monitor "Auxiliary Heater(PTC)" parameter on the GDS.

( As soon as turning engine ON "Auxiliary Heater(PTC)" parameter turns "ON". Check if the parameter turns "OFF" after engine is warmed up.)

Specification :

Engine coolant temp. below 70℃(Intake air temp. below 5℃) : "Auxiliary Heater(PTC)" "ON"

Engine coolant temp. above 70℃ : "Auxiliary Heater(PTC)" "OFF"
