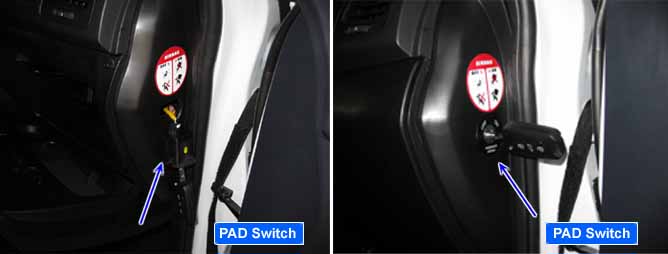

PAD Switch(Passenger airbag deactivation Switch) is the device which prevents Passenger airbag from being deployed when the passenger seat is unoccupied as driver turning OFF PAD Switch.
When PAD Switch turned OFF, " PASSENGER SRS OFF" lamp turns ON.
The above DTC is recorded when short to ground in PAD Switch occur.
Item | Detecting Condition | Possible cause | |
DTC Strategy |
•
Check current |
•
PAD Switch short /short to ground in the warning lamp circuit
•
Short, poor contact in the warning lamp | |
Enable Conditions |
•
Ignition "ON" | ||
Threshold Value |
•
PAD Switch short /short to ground in the warning lamp circuit ( Ib > 18.1 mA ) | ||
Diagnostic Time | Qualification |
•
More than 1s (100ms x 10)1 time | |
De-Qualification |
•
More than 2s (100ms x 20) | ||
