Generally, Power voltage or current is not supplt to Start motor after Engine start. If Power voltage or current supply to Start motor after Engine start, It could be incur critical damage with Start motor and Fly-wheel.So thar ECU monitoring srarting circuit in order to prevent from damage.
P0617 is set when the high current detected for 1second after Engine running
Item | Detecting Condition | Possible Cause | ||
DTC Strategy |
•
Current Monitoring |
•

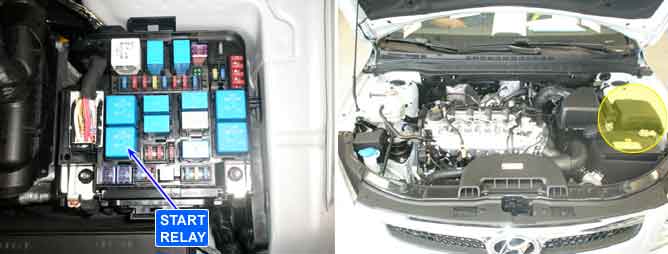

Start relay circuit
•
ECU | ||
Enable Conditions |
•
IG Key "ON" | |||
Threshold Value |
•
When output signal is above the maximum value | |||
Diagnostic Time |
•
1000ms | |||
Fail Safe | Fuel cut | YES | ||
EGR Off | NO | |||
Fuel Limit | NO | |||
MIL | YES | |||
