LIN technology is , a serial communication system which is used for communicating only one signal, developed to substitute CAN network, Normally used for multi signal communiction. It is only single wire to make LIN communiction in order to make simple.
ECM sets this code when The error detected in Battery sensor.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Signal Monitoring |
•
Open or short in LIN communication line |
Enable Conditions |
•
- | |
Threshold value |
•
Framing error | |
Diagnosis Time |
•
1sec. | |
MIL On Condition |
•
DTC only(Idle stop forbidden) |

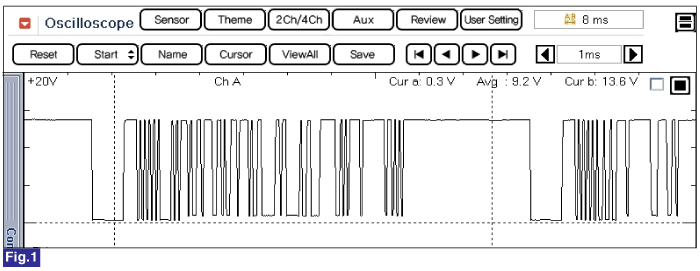

Fig 1) Signal waveforms of battery sensor
