3.

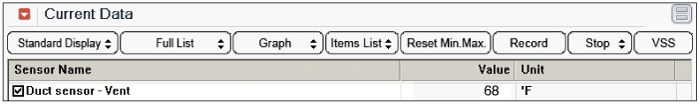

Select and monitor "Duct sensor-Vent" parameter.
Connect scantool with diagnostic connector.
Warm up the engine to normal engine temperature afte engine starts.
Select and monitor "Duct sensor-Vent" parameter.
Is the Duct sensor normal ?
 | ▶ Go to "Inspection and Repair" procedure. |
 | ▶ This is a intermittent problem caused by poor contact of component or Control Unit. ▶ Thoroughly check the looseness, poor connection, bent, corrison, contamination, deformation or damage of connector. ▶ Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure. |
