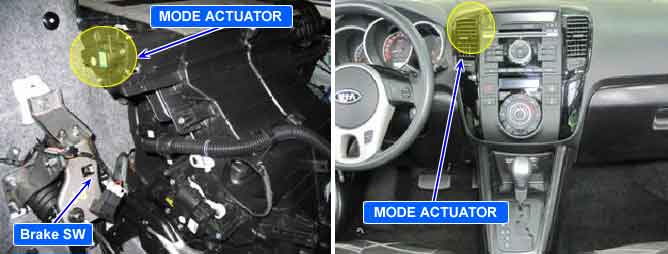

The mode control actuator mounted on heater unit adjusts position of mode door by operating Direction Motor based on signal of A/C control unit. Pressing mode select switch makes the mode control actuator shift in order of vent→ B/L → floor → mix.
The Air conditioner Control Module sets DTC B1249 if Feedback signal of Mode Actuator has been detected below 0.1V for 0.3 seconds.
Item | Detecting Condition | Possible Cause |
DTC Strategy |
•
Voltage check |
•
Pooer Connection in harness
•
Open in signal (Feedback signal), Power or Gruoud circuit.
•
Faulty Mode Actuator.
•
Faulty Air conditioner Control Unit. |
Enable Conditions |
•
IG KEY ON | |
Threshold value |
•
Feedback signal of Mode Actuator has been detected below 0.1V for 0.3 seconds | |
Failsafe |
•
If the Mode actuator is placed at Vent mode right before fail detection, Actuator is operated and fixed to Vent Mode Postion.
•
The others mode are selected, Actuator is moved to DEF mode position |
Mode Door Position | Voltage |
VENT | 0.3V |
VENT/DEF | 1.03V |
VENT/FLOOR | 1.77V |
VENT/DEF/FLOOR | 2.5V |
FLOOR | 3.2V |
DEF/FLOOR | 3.97V |
DEF | 4.7V |
