6.
Monitor the parameter of 'Battery Positive Voltage' on the screen.
Specification : less than 17 [V]

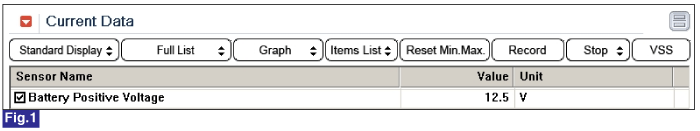

Fig.1) Current data (normal)
Start engine and turn headlight and rear defroster on.
Set up 'GDS' with 'GDS TPMS'.
Select the vehicle model and "TPMS" system.
Select "CURRENT DATA" function.
Maintaining ENG. RPM at 2,500RPM(idle) over 2 minutes.
Monitor the parameter of 'Battery Positive Voltage' on the screen.
Specification : less than 17 [V]
Fig.1) Current data (normal)
Is parameter within specifications?
 | ▶ Fault is intermittent caused by poor connection in power harness and/or TPMS ECU's connector or was repaired and TPMS ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Inspection/Repair" procedure. |
