Component Location

1. Main relay

2. Fuel pump relay

3. A/C relay

4. Wiper relay (Rear)

5. Wiper relay (Front)

6. Blower relay

7. Burglar alarm horn relay

8. Condenser fan relay (High)

9. Tailgate open relay

10. Start relay

11. Head lamp relay (High)

12. Horn relay

13. Head lamp relay

14. Condenser fan relay (Low)

15. Fuel filter heater relay

16. PTC heater relay #1

17. PTC heater relay #2

18. PTC heater relay #3

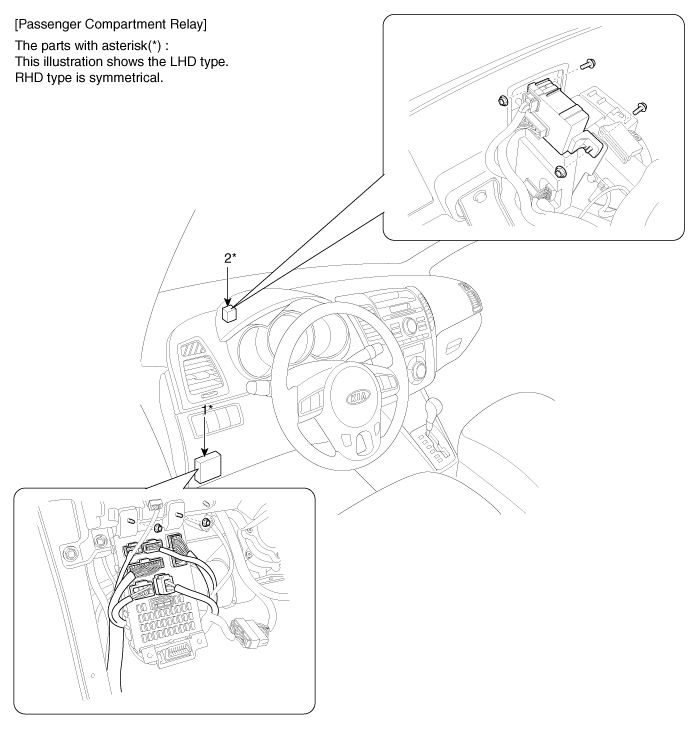

1.

Front fog lamp relay,Rear fog lamp relay, Tail gate unlock relay, Tail lamp relay, Front deicer/Burglar alarm horn relay, Power window relay, Hazard relay,DRL relay, Door lock/unlock relay, Rear glass defogger relay (Built-in-junction box)

2.

ACC relay, IG1 relay, IG2 relay (Built-in PDM relay box)
