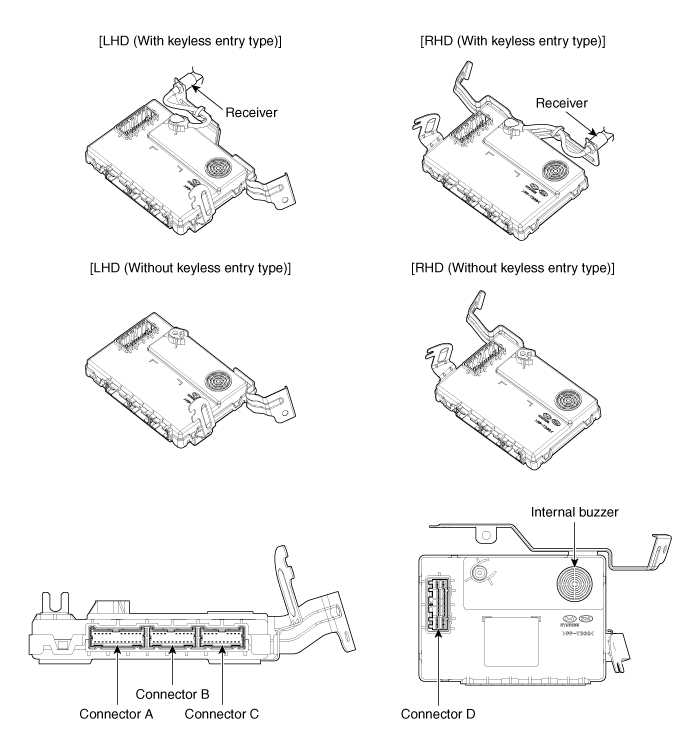

※ Internal buzzer is used for rear parking assist system. |
Pin NO. | Connector A | Connector B | Connector C | Connector D |
1 | Ground | Dead lock relay | 4 door open switch | Speed sensor |
2 | Security indicator | Rear fog lamp relay | MIST switch | - |
3 | Central door lock indicator | Safety power window relay | Wiper INT volume | K - Line |
4 | Driver seat belt indicator | Head lamp low relay | Driver door open switch | Front fog lamp switch |
5 | Assistant seat belt indicator | Front wiper relay | Assistant door open switch | Head lamp switch |
6 | - | IGN2 | Rear right door unlock switch | Driver seat belt switch |
7 | AV Tail | Room lamp | Rear left door unlock switch | CAN - High |
8 | - | B+ | DRL actuator switch | Coad save |
9 | - | IGN1 | Tailgate open switch | Navi wake up signal |
10 | Glove box lamp | Rear wiper ON switch | Tail lamp switch | Front wiper INT switch |
11 | - | ALT 'L' | Hood switch | Rear washer switch |
12 | horn relay | Driver door key lock switch | Rear wiper INT switch | Inhibit 'R' switch |
13 | Tail lamp relay | Driver door key unlock switch | Crash input | Front washer switch |
14 | DRL (Day running right) Relay | Central door lock unlock switch | Parking brake switch | Glove box lamp switch |
15 | Rear defogger relay | RPAS Warning signal | Rear fog switch | Auto right switch |
16 | Tailgate release relay | Tailgate open handle switch | - | - |
17 | Front fog lamp relay | Key in switch | Deicer defogger switch | ACC |
18 | Power window relay | Driver door unlock switch | - | speed limit |
19 | Driver unlock relay | Assistant door unlock switch |
| PAB signal switch (Assistant seat belt switch) |
20 | Rear wiper relay | Ground2 | CAN - Low | |
21 | Hazard signal | - | ||
22 | Front deicer relay | Auto right power | ||
23 | Door lock relay | Auto right signal | ||
24 | AMS (Alternator management system) | Ground3 | ||
25 |
| - | ||
26 | - |
