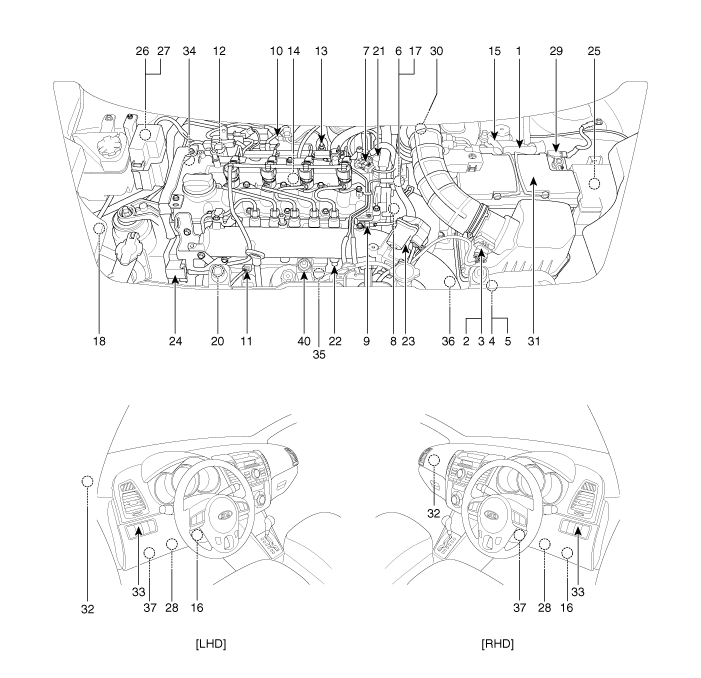

1. ECM (Engine Control Module)
2. Mass Air Flow Sensor (MAFS)
3. Intake Air Temperature Sensor (IATS) #1 built in MAFS
4. Boost Pressure Sensor (BPS)
5. Intake Air Temperature Sensor (IATS) #2 built in BPS
6. Crankshaft Position Sensor (CKPS)
17. Vehicle Speed Sensor (VSS)
7. Camshaft Position Sensor (CMPS)
21. Electric EGR Control Valve
8. Engine Coolant Temperature Sensor (ECTS)
9. Rail Pressure Sensor (RPS)
19. Injector
10. Lambda Sensor
13. Exhaust Gas Temperature Sensor (EGTS) #1 for VGT
11. Fuel Temperature Sensor (FTS)
20. Fuel Pressure Regulator Valve
12. Differential Pressure Sensor (DPS)
14. Exhaust Gas Temperature Sensor (EGTS) #2 for DPF
15. Water Sensor (included in Fuel Filter)
16. Accelerator Position Sensor (APS) [LHD]
16. Accelerator Position Sensor (APS) [RHD]
18. A/C Pressure Transducer (APT)
22. VGT Control Solenoid Valve
23. Air cotrol valve (ACV)
24. Variable Swirl Control Actuator
25. Main Relay
26. Glow Relay
27. PTC Heater Relay (Optional)
29. Battery Sensor
31. AGM Battery
30. Brake Booster Vacuum Pressure Sensor (BBVPS)
32. DC DC Converter
33. ISG OFF Switch
34. Alternator
35. Starter
36. Neutral Switch
37. Clutch Switch
38. Door Switch
39. Seat Belt Switch
40. Hood Switch
