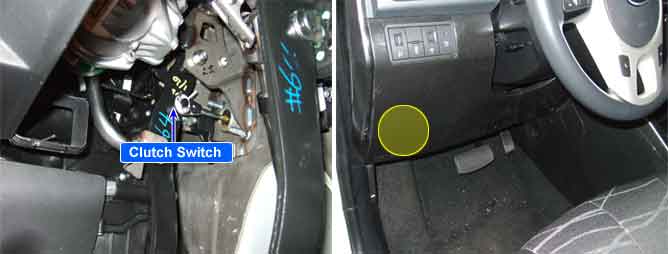

The clutch switch is used for the Hill start Assist Control function.
If the wrong clutch signal is continued for a certain period of time, a failure is recognized.
Item | Detecting Condition | Possible cause |
DTC Strategy |
•
Clutch signal monitoring | 1. Open or short clutch switch 2. Faulty clutch switch |
Monitoring Period |
•
Continuous | |
Enable Conditions |
•
The fault is detected if with high vehicle speed (>60km/h) the clutch signal has been set continuously | |
Fail-Safe |
•
Inhibit the HAC control and allow the ABS/EBD/ESP control.
•
The ESP warning lamp is activated. |
