4.
Verify that the mode control actuator operates to the vent mode when connecting in the reverse.
1. - 2. - 3. Defrost mode 4. Sensor Ground | 5. Feedback Signal 6. 5V (Vcc) 7. Vent Mode |
Ignition "OFF”
Disconnect the connector of mode control actuator.
Verify that the mode control actuator operates to the defrost mode when connecting 12V to the terminal 3 and grounding terminal 7.
Verify that the mode control actuator operates to the vent mode when connecting in the reverse.
1. - 2. - 3. Defrost mode 4. Sensor Ground | 5. Feedback Signal 6. 5V (Vcc) 7. Vent Mode |
Check the voltage between terminals 4 and 5.
Door position | Voltage (4-5) | Error detecting |
Vent | 0.3 ± 0.15V | Low voltage :0.1V or less |
Defrost | 4.7 ± 0.15V | High voltage :4.9V or more |
It will feedback current position of actuator to controls.
If the measured voltage is not specification, substitute with a known-good mode control actuator and check for proper operation.
If the problem is corrected, replace the mode control actuator.
Disconnect the negative (-) battery terminal.
Remove the left side cover (A).
Remove the left extension cover (A).
Remove the crashpad lower cover (A).
Remove the crash pad side switch assembly (A).
Remove the crashpad lower panel (A).
Remove the left shower duct (A).
Remove the brake pedal.
(Refer to BR group - "Brake Pedal")

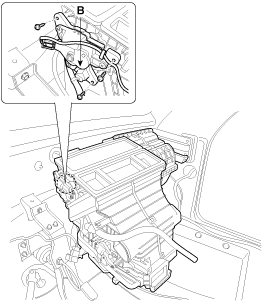

Loosen the mounting screw and then remove the temperature control actuator (B).
Installation is the reverse order of removal.
