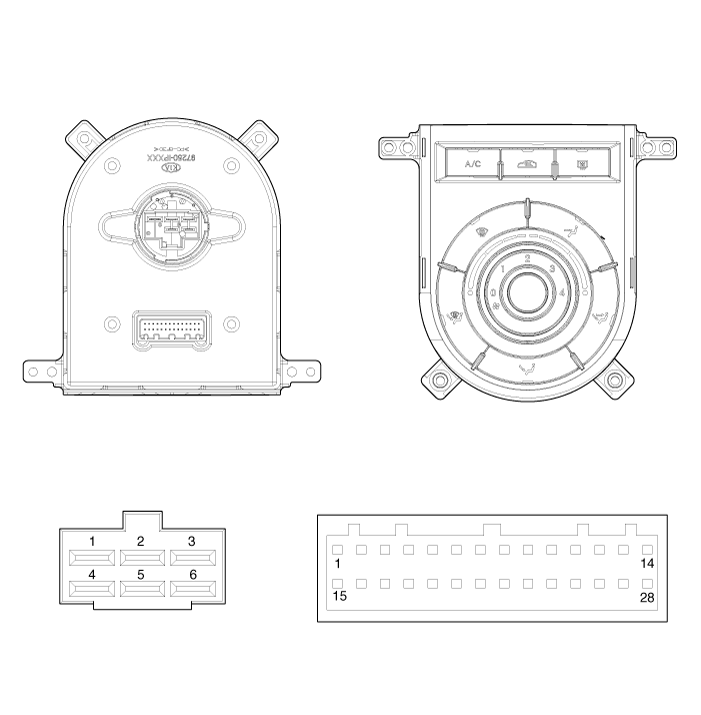

Connector | Pin no | Function | Connector | Pin no | Function |
Connector(A) | 1 | Tail (ILL+) | Connector(B)
| 1 | GND |
2 | Battery | 2 | Low | ||
3 | A/C Output (Thermo) | 3 | - | ||
4 | Mode actuator (Vent) | 4 | M / Low | ||
5 | Mode actuator (Def) | 5 | M / High | ||
6 | Temp actuator(Cool) | 6 | High | ||
7 | Temp actuator(Warm) |
|
| ||
8 | Intake actuator(Fre) | ||||
9 | Intake actuator(Rec) | ||||
10 | HTD | ||||
11 | Sensor REF(+5V) | ||||
12 | Blower ON signal | ||||
13 | Blower Voltage F/B | ||||
14 | Rheostat (ILL-) | ||||
15 | IGN2 | ||||
16 | Speed Signal | ||||
17 | PTC relay2 | ||||
18 | PTC relay3 | ||||
19 | Temp actuator F/B | ||||
20 | Mode actuator F/B | ||||
21 | Intake actuator(Def) | ||||
22 | Evaporator sensor(+) | ||||
23 | Ambient sensor(+) | ||||
24 | A/C Select signal | ||||
25 | Rear defog S/W | ||||
26 | Sensor GND | ||||
27 | PTC ON signal(Low) | ||||
28 | GND |
Connector | Pin no | Function | Connector | Pin no | Function |
Connector(A) | 1 | Tail (ILL+) | Connector(B)
| 1 | GND |
2 | Battery | 2 | Low | ||
3 | Rear Defog S/W | 3 | - | ||
4 | Mode actuator (Vent) | 4 | M / Low | ||
5 | Mode actuator (Def) | 5 | M / High | ||
6 | Temp actuator(Cool) | 6 | High | ||
7 | Temp actuator(Warm) |
|
| ||
8 | Intake actuator(Fre) | ||||
9 | Intake actuator(Rec) | ||||
10 | HTD | ||||
11 | Sensor REF(+5V) | ||||
12 | Blower ON signal | ||||
13 | PTC ON Signal | ||||
14 | Rheostat (ILL-) | ||||
15 | IGN2 | ||||
16 | Max Blower ON Signal | ||||
17 | PTC relay2 | ||||
18 | PTC relay3 | ||||
19 | Temp actuator F/B | ||||
20 | Mode actuator F/B | ||||
21 | Intake actuator F/B | ||||
22 | Evaporator sensor(+) | ||||
23 | Blower ON signal | ||||
24 | - | ||||
25 | C_CAN HIGH | ||||
26 | C_CAN LOW | ||||
27 | Sensor GND | ||||
28 | GND |
