2.
Loosen the mud guard mounting screws and clils.
When removing and installing the fender, an assistant is necessary.
Be careful not to damage the fender and body.
When removing the clips, use a clip remover.
Remove the front bumper cover.
(Refer to the BD group – “Front bumper”)
Loosen the mud guard mounting screws and clils.

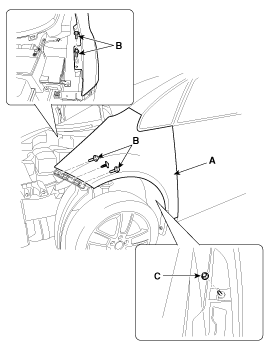

Remove the fender (A) after removing the fender mounting screw, bolts (B) and nut (C).
Installation is the reverse of removal.
