3.
Measure resistance between Pin No.1(Power) terminal and Pin No.2(Signal) terminal of the Front RH Wheel Speed Sensor. (Component Side)
Specification : Approx. 475.9 kΩ

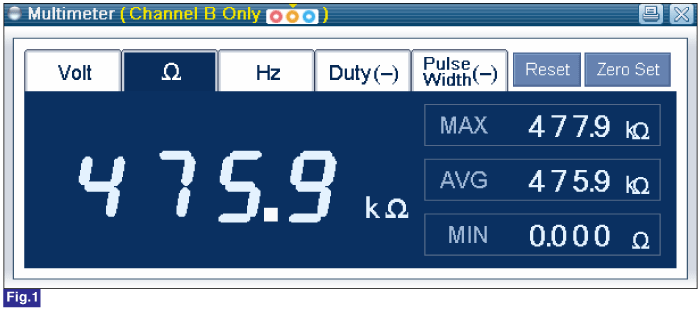

Fig.1) Resistance of Front RH Wheel Speed Sensor
IG Key "OFF".
Disconnect Wheel Speed Sensor connector.
Measure resistance between Pin No.1(Power) terminal and Pin No.2(Signal) terminal of the Front RH Wheel Speed Sensor. (Component Side)
Specification : Approx. 475.9 kΩ
Fig.1) Resistance of Front RH Wheel Speed Sensor
Is the resistance of front RH wheel speed sensor simular as shown above?
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
 | ▶ If no problems were found with the circuits or connectors, replace the front RH wheel speed sensor. Go to "Verification of Vehicle Repair" procedure. |
