Pin | Function (Connector A) | Pin | Function (Connector A) |
1 | - | 1 | - |
2 | - | 2 | - |
3 | - | 3 | - |
4 | - | 4 | - |
5 | - | 5 | - |
6 | - | 6 | - |
7 | - | 7 | - |
8 | - | 8 | - |
9 | - | 9 | - |

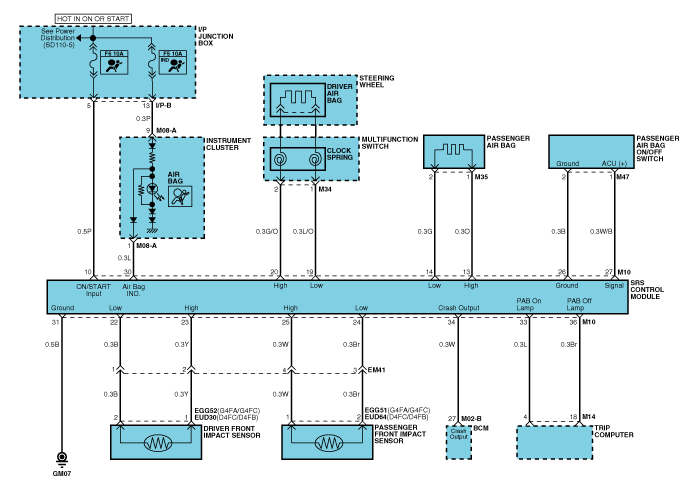

10 | Ignition | 10 | - |

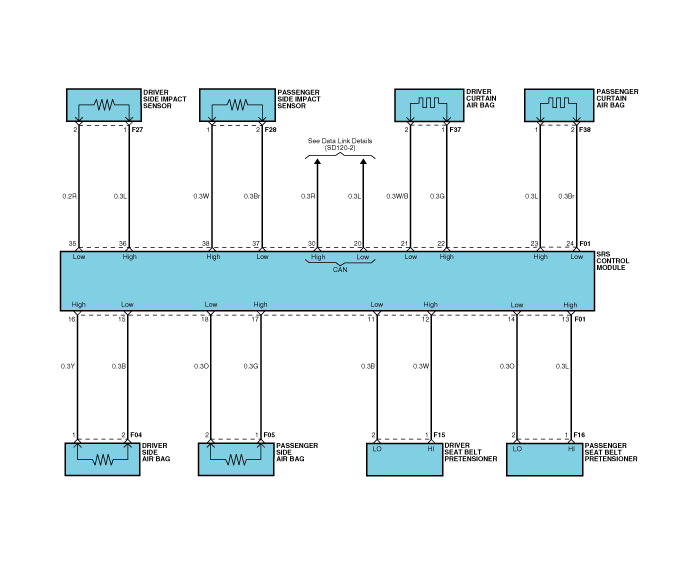

11 | - | 11 | Seat Belt Pretensioner [Front - Driver] Low |
12 | - | 12 | Seat Belt Pretensioner [Front - Driver] High |
13 | Passenger Airbag High | 13 | Seat belt Pretensioner [Front - Passenger] High |
14 | Passenger Airbag Low | 14 | Seat belt Pretensioner [Front - Passenger] Low |
15 | - | 15 | Side Airbag [Front - Driver] Low |
16 | - | 16 | Side Airbag [Front - Driver] High |
17 | - | 17 | Side Airbag [Front - Passenger] High |
18 | - | 18 | Side Airbag [Front - Passenger] Low |
19 | Driver Airbag Low | 19 | - |
20 | Driver Airbag High | 20 | CAN_Low |
21 | - | 21 | Curtain Airbag [Driver] Low |
22 | Front Impact Sensor [Driver] Low | 22 | Curtain Airbag [Driver] High |
23 | Front Impact Sensor [Driver] High | 23 | Curtain Airbag [Passenger] High |
24 | Front Impact Sensor [Passenger] Low | 24 | Curtain Airbag [Passenger] Low |
25 | Front Impact Sensor [Passenger] High | 25 | - |
26 | PAB ON/OFF Switch Ground | 26 | - |
27 | PAB ON/OFF Switch Signal | 27 | - |
28 | Short Bar | 28 | - |
29 | Short Bar | 29 | - |
30 | Airbag Warning Lamp | 30 | CAN_High |
31 | Ground | 31 | - |
32 | - | 32 | - |
33 | PAB ON Lamp | 33 | - |
34 | Crash Output | 34 | - |
35 | - | 35 | Side Impact Sensor [Front - Driver] Low |
36 | PAB OFF Lamp | 36 | Side Impact Sensor [Front - Driver] High |
|
| 37 | Side Impact Sensor [Front - Passenger] Low |
|
| 38 | Side Impact Sensor [Front - Passenger] High |
|
| 39 | - |
|
| 40 | - |
